VIC L100077PE0 10 CPL 77 E ORG
VIC L100077PE0 10 CPL 77 E ORG

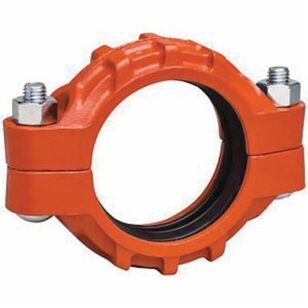

Victaulic® Standard Flexible Coupling, 77 Series, Coupling Fitting, 10 in Connection Size 1, Connection Type 1: Grooved, 10 in Connection Size 2, Connection Type 2: Grooved, Grooved Connection, Iron, Material Construction: Iron, Finish: Orange Enamel, 1000 psi, For Use With: Standard Roll Grooved, Cut Grooved Pipes, Grooved Fittings, Valves and Accessories, 10.75 in Dia x 17.13 in L x 2.63 in W, -30 to 230 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,597.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandVictaulic®
Connection Size 110
Connection Size 210
Connection TypeGrooved
Connection Type 1Grooved
Connection Type 2Grooved
Dimensions10.75 " Dia x 17.13 " L x 2.63 " W
FinishOrange Enamel
Fitting TypeCoupling
For use with:Standard Roll Grooved, Cut Grooved Pipes, Grooved Fittings, Valves and Accessories
IndustryPlumbing
MaterialIron
Material ConstructionIron
Pressure Rating1000
Series77 Series
Temperature Rating-30 to 230
Additional Information
ASTM A536 Grade 65-45-12|cULus Listed|FM Approved|LPBC Certified|VdS Approved|EAC Certified|DVGW Certified
Features & Benefits
- Cross ribbed, two piece housing construction Joins standard roll grooved and cut grooved pipe, as well as grooved fittings, valves and accessories Provides a flexible pipe joint which allows for expansion, contraction and deflection Exclusively for use with pipe and Victaulic® products which feature ends formed with the Victaulic® OGS groove profile
Documents
VIC L100077PE0 10 CPL 77 E ORG
BrandVictaulic®
MFG #L100077PE0
Keller #185532
My Part ##
Last Ordered#
$1,597.00 / ea
