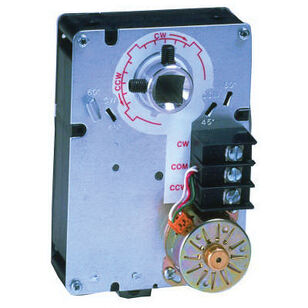

Honeywell ML6161B2024/U Damper Actuator, 24 VAC (+/-20%), 90 sec Nominal at 60 Hz Driving Timing
Honeywell ML6161B2024/U Damper Actuator, 24 VAC (+/-20%), 90 sec Nominal at 60 Hz Driving Timing
Honeywell Damper Actuator, 24 VAC (+/-20%), 50/60 Hz, 1.8 V-A Driving VA, Screw Terminals Electrical Connection, 90 sec Nominal at 60 Hz Driving Timing, Steel Plate and Plenum Rated Plastic, 35 in-lb Torque, 45 dBA at 1 min Driving, 20 - 125 deg F Ambient, 20 - 130 deg F Shipping and Storage, NEMA 1 Enclosure, 5 - 95% RH Non-Condensing Humidity, 3.39 in W x 5.55 in H x 2.52 in D, Configuration: Floating, SPDT, 90 deg Stroke
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$197.30Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
ConfigurationFloating, SPDT
Dimensions3.39 " W x 5.55 " H x 2.52 " D
Electrical ConnectionScrew Terminals
Enclosure TypeNEMA 1
Frequency Rating50/60
Humidity Rating5 - 95% RH Non-Condensing
Includes4074ENY Bag Assembly
MaterialSteel Plate and Plenum Rated Plastic
Noise Level45 dBA at 1 min Driving
Stroke90
Temperature Rating20 - 125 deg F Ambient, 20 - 130 deg F Shipping and Storage
Timing Range90 sec Nominal at 60 Hz Driving
Torque Rating35
VA Rating1.8 V-A Driving
Voltage Rating24 VAC (+/-20%)
Additional Information
UL 873, CE 89/336/ECC, 73/23/EEC, cUL C22.2 Number 24-93, C-Tick N314
Features & Benefits
- Includes 4074ENY bag assembly 3/8 - 1/2 in square or round shaft Declutch mechanism manual operation Aluminum hub, 2 set screws shaft adapter
