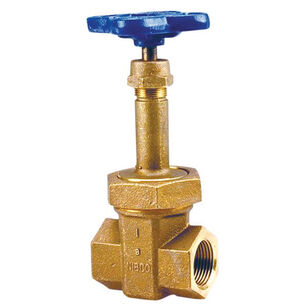

NIBCO T-174-A-2IN BRZ R/S GATE VLV
NIBCO T-174-A-2IN BRZ R/S GATE VLV
NIBCO® Gate Valve, T-174-A Series, 2 in Nominal, FNPT Connection, 300 psi, Pressure Class: Class 300, Water Media, 3.88 in Inlet to Outlet Length, 12-1/2 in Top to Inlet Center, Bronze Body, Bronze Seat, Silicon Bronze Alloy Stem, Silicon Bronze Trim, Aramid Fiber/Graphite Packing, Malleable Iron Handle, Standard Handwheel Operator, 421 deg F, Material Standard: ASTM A47, ASTM B371 C69400, C69430, ASTM B99 C65100, ASTM B62, ASTM B1 C84400, ASTM B16, ASTM B124, ASTM B16 C36000, ASTM B61, ASTM A276 541000, 14.19 in H x 4.5 in W 14.19 in H x 4.5 in W, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,712.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
ApplicationFor commercial and industrial applications, HVAC, specifically for medium to high pressure steam, and other general utility services
Body MaterialBronze
Connection TypeFNPT
Dimensions14.19 " H x 4.5 " W
Domestic/ImportDomestic
Handle MaterialMalleable Iron
IndustryPlumbing
Inlet to Outlet Length3.88
Material StandardASTM A47, ASTM B371 C69400, C69430, ASTM B99 C65100, ASTM B62, ASTM B1 C84400, ASTM B16, ASTM B124, ASTM B16 C36000, ASTM B61, ASTM A276 541000
MediaWater
Nominal Size2
Operator TypeStandard Handwheel
Packing MaterialAramid Fibre/Graphite
Pressure ClassClass 300
Pressure Rating300
Seat MaterialBronze
SeriesT-174-A Series
Stem MaterialSilicon Bronze Alloy
Temperature Rating421
Top to Inlet Center12-1/2
Trim MaterialSilicon Bronze
Warranty5 Year Limited
Additional Information
MSS SP-80 Certified
Features & Benefits
- Rising stem Alloy solid wedge Union bonnet Block pattern Dezincification-resistant
Documents
Marketing Information
The NIBCO® bronze gate valve may be used in commercial and industrial applications, HVAC, specifically for medium to high-pressure steam and other general utility services. Choose NIBCO® gate valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® gate valves are backed by the NIBCO® 5 year 125% limited warranty.
