NIBCO T-473-Y-3/4 BRZ CHECK VLV NOT FOR POTABLE USE
NIBCO T-473-Y-3/4 BRZ CHECK VLV NOT FOR POTABLE USE
NIBCO® Horizontal Swing Check Valve, 3/4 in Nominal, FNPT Connection, 600 psi, Pressure Class: 300 lb, 421 deg F, 3.13 in Inlet to Outlet Length, 2.06 in Top to Inlet Center, Bronze Body, PTFE Disc, 2.94 in L x 2.42 in W x 1.73 in H, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$454.70 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Body MaterialBronze
Connection TypeFNPT
Dimensions2.94 " L x 2.42 " W x 1.73 " H
Disc MaterialPTFE
Domestic/ImportDomestic
IndustryPlumbing
Inlet to Outlet Length3.13
Nominal Size3/4
Pressure Class300
Pressure Rating600
Temperature Rating421
Top to Inlet Center2.06
Shipping Dimensions (L x W x H)9.75" x 3.5" x 4.56"
Additional Information
MSS SP-80
Features & Benefits
- 300 psi/20.7 bar saturated steam to 421 deg F/216 deg C 600 psi/41.4 bar non-shock cold working pressure Renewable PTFE disc Regrindable seat
Documents
Marketing Information

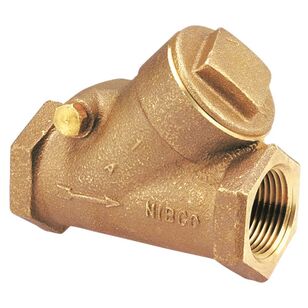

The NIBCO® bronze horizontal swing check valve has a Y-pattern design with renewable seat and disc. The swing check valve prevents backflow by automatically closing when fluid reverses direction. It features a screw in bonnet for accessibility to repair or replace parts. The check valve is recommended for commercial and industrial steam service.
