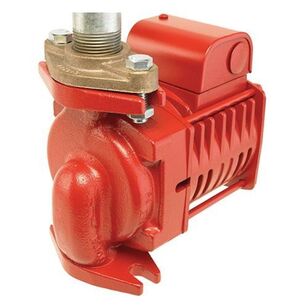

ARMSTRONG E.2 Series E9.2 182202-659 Circulator Pump, 0 to 38 gpm, 125 W, 120 V, 2 A, 60 Hz, 150 psi Max Pressure, Iron
ARMSTRONG E.2 Series E9.2 182202-659 Circulator Pump, 0 to 38 gpm, 125 W, 120 V, 2 A, 60 Hz, 150 psi Max Pressure, Iron
ARMSTRONG Circulator Pump, E.2 Series, Model: E9.2, 0 to 38 gpm Flow Rate, 0 to 42.4 ft Maximum Head, 125 W, 120 V, 2 A, 60 Hz, 150 psi Maximum Pressure, 3250 rpm Motor Speed Rating, 1/6 hp, 1-1/4 in Connection, 2-Bolt Flanged Connection, 1 ph Phase, 2 Poles, 230 deg F, Iron, 6.4 in H x 7.1 in W x 4.2 in D, Additional Information: Glass-Filled Noryl Impeller Material
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$342.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandARMSTRONG
Additional InformationGlass-Filled Noryl Impeller Material
Amperage Rating2
Connection Size1-1/4
Connection Type2-Bolt Flanged
Dimensions6.4 " H x 7.1 " W x 4.2 " D
Flow Rate0 to 38
Frequency Rating60
HP Rating1/6
IndustryHydronics
MaterialIron
Maximum Head0 to 42.4
Maximum Pressure150
ModelE9.2
Motor Speed Rating3250
Number of Poles2
Phase1
Power Rating125
SeriesE.2 Series
Temperature Rating230
Voltage Rating120
Features & Benefits
- E.2 Series circulators have been re-designed to improve durability and provide enhanced protection against leakage and water damage to electrical components Larger, stainless steel shaft New sealed, permanently lubricated bearings Bellows-style mechanical seal with silicon carbide wear surfaces New water slinger to protect motor against water intrusion EPDM volute gasket Easy on site seal replacement means you can repair an E.2 Series pump rather than throwing it away and installing a replacement For used in a wide range of hydronic applications including hot and chilled water recirculation, domestic hot water generation, snow-melt installations, radiant heating systems, geothermal heat pumps
ARMSTRONG E.2 Series E9.2 182202-659 Circulator Pump, 0 to 38 gpm, 125 W, 120 V, 2 A, 60 Hz, 150 psi Max Pressure, Iron
BrandARMSTRONG
MFG #182202-659
Keller #198609
My Part ##
Last Ordered#
$342.00Â /Â ea
