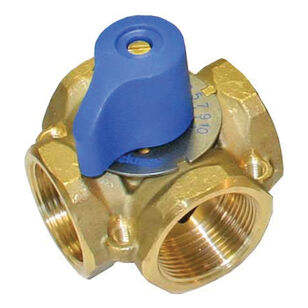

Tekmar® 722 Mixing Valve, 1-1/4 in, 146 psi, Brass
Tekmar® 722 Mixing Valve, 1-1/4 in, 146 psi, Brass
Tekmar® Mixing Valve, 1-1/4 in Nominal, Number of Ports/Ways: 4, 146 psi, 21 Cv Flow Coefficient (Cv), EPDM Seal, Brass, Material Standard: CW 617N/EN 12165, Fluid Media, Mixing Valve, -20 to 248 deg F, 3-1/4 in H x 3-1/4 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$486.00 / ea
In Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTekmar®
Dimensions3-1/4 " H x 3-1/4 " W
Flow Coefficient (Cv)21
IndustryHydronics
MaterialBrass
Material StandardCW 617N/EN 12165
MediaFluid
Nominal Size1-1/4
Number of Ports/Ways4
Pressure Rating146
Seal MaterialEPDM
Temperature Rating-20 to 248
Valve TypeMixing
Features & Benefits
- Valve position can be manually set using the handle Brass construction to resist corrosion
Marketing Information
The four-way brass mixing valve 722 is used to mix supply water from a hydronic source with water returning from a system. It is designed for use in either closed loop or open loop hydronic systems. This four-way valve has standard female NPT threads, as well as a maximum leak through rate of 1% to allow for water expansion during temperature changes. The valve position can be manually set using the handle. An actuating motor 741 can be used to automatically operate the valve.
Tekmar® 722 Mixing Valve, 1-1/4 in, 146 psi, Brass
BrandTekmar®
MFG #722
Keller #200404
