NIBCO GD4765-5-8IN GRV BFLY VLV
NIBCO GD4765-5-8IN GRV BFLY VLV

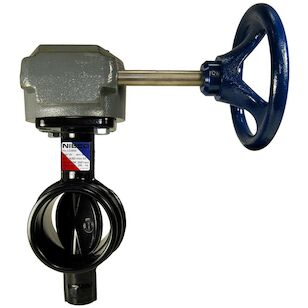

NIBCO® Butterfly Valve, GD-4765 Series, 8 in Nominal, Grooved Connection, 300 psi, Air, Water Media, 8.05 in Top to Inlet Center, Iron Body, Stainless Steel Stem, Iron Disc, Buna-N/EPDM Softgoods, Gear Operator, 200 deg F, Material Standard: ASTM A395, Contains Lead, Finish: Polyamide-Coated, 9-1/4 in Dia, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,802.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Body MaterialIron
Connection TypeGrooved
Dimensions9-1/4 " Dia
Disc MaterialIron
Domestic/ImportDomestic
FinishPolyamide-Coated
IndustryPlumbing
Material StandardASTM A395
MediaAir, Water
Nominal Size8
Operator TypeGear
Pressure Rating300
SeriesGD-4765 Series
Softgoods MaterialBuna-N/EPDM
Stem MaterialStainless Steel
Temperature Rating200
Top to Inlet Center8.05
Additional Information
MSS SP-25/67|NSF/ANSI/CAN 61/372
Features & Benefits
- EPDM encapsulated ductile iron disc Stainless steel stem with metal bushings Splined drive Extended neck for up to 2" of insulation Not recommended for steam service
Documents
Marketing Information
The NIBCO grooved end NSF third party certified butterfly valve provides bubble-tight shutoff at 300psi. Grooved ends are compatible with IPS pipe. These valves are ideal in grooved steel pipe systems for commercial and some light industrial process applications, including HVAC, in addition to hot and cold potable water.
