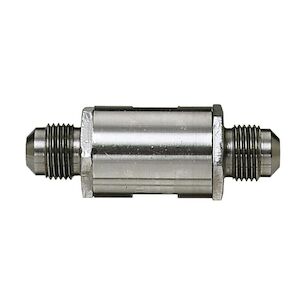

3/8 IN Dual Check Valve Backflow Preventer Male NPT End Connections
3/8 IN Dual Check Valve Backflow Preventer Male NPT End Connections
3/8 IN Dual Check Valve Backflow Preventer Male NPT End Connections
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$478.50Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Backflow Preventer TypeDual Check
Depth2.19"
Disc MaterialSantoprene
FinishStainless Steel
Height3.06"
IndustryPlumbing
Inlet Connection Size3/8"
Inlet Connection Size Metric10 mm
Inlet Connection TypeMale Threaded
Inlet Thread TypeNPT
MaterialStainless Steel
Maximum Temperature Deg F110
Maximum Working Pressure Psi200
Minimum Temperature Deg F33
Outlet Connection Size3/8"
Outlet Connection Thread TypeNPT
Outlet Connection TypeMale Threaded
Pressure OperationContinuous
Prop 65 WarningYes
Protection TypeBackpressure
Seat MaterialNoryl
SeriesSD-2
Weight0.35 lbs.
Width1.88"
Shipping Dimensions (L x W x H)2.187" x 1.88" x 3.06"
Features & Benefits
- Maximum working pressure is 200 psi (13.8 bar)
- Includes strainer
- Can be installed vertically or horizontally
- Certified to ANSI/NSF standard 20
Documents
Marketing Information
This 3/8 inch dual check valve backflow prevents the reverse flow of contaminated water from entering into the potable water supply due to backpressure backflow. It consists of a stainless steel body construction, male NPT end connections, and internal rubber components. It is designed for continuous or intermittent pressure applications and dispensing equipment for tea and coffee.
3/8 IN Dual Check Valve Backflow Preventer Male NPT End Connections
BrandWATTS®
MFG #0061654
Keller #203861
My Part ##
Last Ordered#
$478.50Â /Â ea
