Sloan®

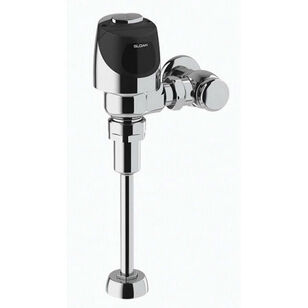

Sloan® G2 G2 8186-0.5 3250424 Sensor Flushometer, 3/4 in Nominal, IPS, 15 to 80 psi, Brass Body
Sloan®
Sloan® G2 G2 8186-0.5 3250424 Sensor Flushometer, 3/4 in Nominal, IPS, 15 to 80 psi, Brass Body
MFG #3250424
Item #207653
Mfr. Part #3250424
UPC #671254266919
Sloan® Sensor Flushometer, Model: G2 8186-0.5, G2 Collection, IPS Connection, 3/4 in Nominal, 15 to 80 psi Pressure, Media: Water, IPS End Connection, 0.5 gpf Flush, Brass Body, Rubber Softgoods, Sensor Operator, Wall Mounting, Polished Chrome, Dimensions: 16 in L x 9-1/8 in W x 4-5/8 in H, Additional Information: 3/4 in Spud Coupling, 11-1/2 in Rough-In Dimension, Top Spud Fixture Connection
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$965.45 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSloan®
Additional Information3/4 " Spud Coupling, 11-1/2 " Rough-" Dimension, Top Spud Fixture Connection
Body MaterialBrass
CollectionG2
Connection TypeIPS
Dimensions16 " L x 9-1/8 " W x 4-5/8 " H
End ConnectionIPS
FinishPolished Chrome
Flush Rate0.5
Includes(4) AA Alkaline Batteries
IndustryPlumbing
MediaWater
ModelG2 8186-0.5
Mounting TypeWall
Nominal Size3/4
Operator TypeSensor
Pressure Rating15 to 80
Softgoods MaterialRubber
Warranty3 Year Limited
Additional Information
ADA Compliant|ANSI/ASME A112.19.2|ASSE 1037|BAA Compliant|cUPC Green Certified|cUPC Certified|Green Globes Materials and Resources Credit Certified|Green Globes Water Credit Certified|LEED Materials and Resources EPD Credit Compliant|LEED Materials and Resources HPD Credit Compliant|LEED V4 Water Efficiency Credit|WaterSense Certified
Features & Benefits
- Sweat solder adapter with cover tube and cast set screw wall flange Low battery flashing LED Flex tube diaphragm designed for improved life and reduced maintenance Engineered metal cover with replaceable lens window Fixed metering bypass and no external volume adjustment to ensure water conservation Handle packing, main seat, stop seat and vacuum breaker to be molded from PERMEX™ rubber compound for chloramine-resistance Courtesy Flush® override button 3/4 in IPS® screwdriver Bak-Chek® angle stop with vandal-resistant stop cap Infrared sensor with multiple-focused, lobular sensing fields for high and low target detection PERMEX® synthetic rubber diaphragm with dual-filtered fixed bypass
