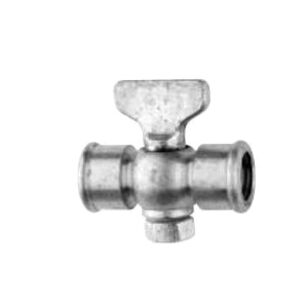

Trerice 865 Gauge Cock, 1/4 in, FNPT, Brass, 200 psig
Trerice 865 Gauge Cock, 1/4 in, FNPT, Brass, 200 psig
Trerice Gauge Cock, 1/4 in Nominal, FNPT Connection, 200 psig, Quarter-Turn Handle Operator, 1.62 in Inlet to Outlet Length, 1.09 in Top to Inlet Center, Brass Body, 500 deg F, 1.62 in L x 7.73 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$17.75Â /Â ea
In Stock
- Attributes
- Documents
- Marketing Information
Attributes
BrandTrerice
Body MaterialBrass
Connection TypeFNPT
Dimensions1.62 " L x 7.73 " H
IndustryPlumbing
Inlet to Outlet Length1.62
Nominal Size1/4
Operator TypeQuarter-Turn Handle
Pressure Rating200
Temperature Rating500
Top to Inlet Center1.09
Documents
Marketing Information
865/880 Series 1/4-turn gauge cocks provide an economical way to shut-off the flow of air to the pressure instrument, thereby allowing the instrument to be isolated from the pressure media or removed from service. Trerice gauge cocks are constructed from brass and are intended for use on air lines where leakage is not of concern. It is recommended to place a needle valve, ball valve or gauge cock in line before every pressure gauge installation.
Trerice 865 Gauge Cock, 1/4 in, FNPT, Brass, 200 psig
BrandTrerice
MFG #865
Keller #219736
My Part ##
Last Ordered#
$17.75Â /Â ea
