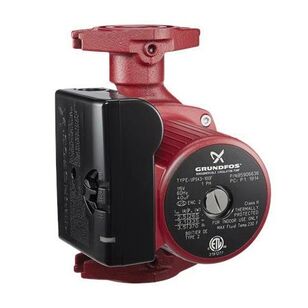

Grundfos UPS Series UPS 43-44 BFC 52722520 Circulator Pump, 63 gpm, 203 W, 115 V, 1.4/1.7/1.8 A, 60 Hz
Grundfos UPS Series UPS 43-44 BFC 52722520 Circulator Pump, 63 gpm, 203 W, 115 V, 1.4/1.7/1.8 A, 60 Hz
Grundfos Circulator Pump, Series: UPS, Model: UPS 43-44 BFC, 63 gpm Flow Rate, 14.11 ft Maximum Head, 203 W Power, 115 V, 1.4/1.7/1.8 A, 60 Hz Frequency, 145.04 psi Maximum, HP Rating: 0.2105 hp, 2 in Connection, Flange Connection, 1 ph Phase, 2 Pole, 35.6 to 230 deg F, Axial, Radial Bearing, Bronze/Composite/PES, Dimensions: 6-11/16 in L x 8-1/2 in H, Additional Information: 8-1/2 in L Port-to-Port
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,047.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandGrundfos
Additional Information8-1/2 " L Port-to-Port
Amperage Rating1.4/1.7/1.8
Bearing TypeAxial, Radial
Connection Size2
Connection TypeFlange
Dimensions6-11/16 " L x 8-1/2 " H
Flow Rate63
Frequency Rating60
HP Rating0.2105
MaterialBronze/Composite/PES
Maximum Head14.11
Maximum Pressure145.04
ModelUPS 43-44 BFC
Number of Poles2
Phase1
Power Rating203
SeriesUPS
Temperature Rating35.6 to 230
Voltage Rating115
Additional Information
CSA Certified|DIN W.-Nr. 2.1176.01 Specified|UL Listed|cULus Listed
Features & Benefits
- Ceramic shaft and radial bearings Carbon axial bearing Stainless steel rotor can and bearing plate
Marketing Information
Grundfos UPS B circulator pumps have a bronze pump housing for drinking water applications while Grundfos UP N have a stainless steel pump housing. Both variants are recommended for underfloor heating systems as the pumped liquid may often become aerated, causing corrosion in cast iron pump housings. The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.
Grundfos UPS Series UPS 43-44 BFC 52722520 Circulator Pump, 63 gpm, 203 W, 115 V, 1.4/1.7/1.8 A, 60 Hz
BrandGrundfos
MFG #52722520
Keller #224377
