NIBCO TFP600A-1/4 FP THD BALL VLV NOT FOR POTABLE USE
NIBCO TFP600A-1/4 FP THD BALL VLV NOT FOR POTABLE USE

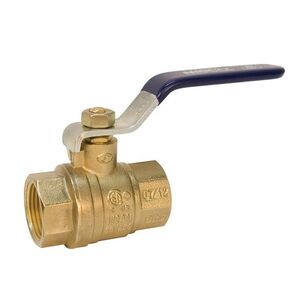

NIBCO® Ball Valve, 1/4 in Nominal, FIPT Connection, Full Port, 600 psi, 1.76 in Inlet to Outlet Length, 1.73 in Top to Inlet Center, 0.39 in Opening, Lever Handle Operator, 4 Cv Flow Coefficient (Cv), Brass Body, PTFE Seat, Brass Stem, FKM Seal, PTFE Packing, Steel Handle, Brass Ball, -4 to 194 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$44.38 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Ball MaterialBrass
Body MaterialBrass
Connection TypeFIPT
Flow Coefficient (Cv)4
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length1.76
Nominal Size1/4
Opening Size0.39
Operator TypeLever Handle
Packing MaterialPTFE
Port TypeFull
Pressure Rating600
Seal MaterialFKM
Seat MaterialPTFE
Stem MaterialBrass
Temperature Rating-4 to 194
Top to Inlet Center1.73
Warranty2 Year Limited
Additional Information
ASME B16.44|cCSAus Certified|CSA Certified|cUPC Listed|FM Approved|UL Listed
Features & Benefits
- Chrome-plated brass ball and stem Blowout-proof stem Threaded end connections Use in US drinking water applications is prohibited after January 3, 2014
Documents
Marketing Information
The NIBCO® brass ball valve with threaded end connections provides bubble tight shut-off. The valve's PTFE seats and hard chrome-plated brass ball exhibit high-chemical resistance properties. The valve is ideal for hot/cold water and gas applications. The NIBCO® brass ball valve provides ease of operation with quarter-turn (90 deg) open to close. The two piece valve features threaded end connections for easy installation. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO® specialty valves are backed by a NIBCO® 2 year limited warranty.
NIBCO TFP600A-1/4 FP THD BALL VLV NOT FOR POTABLE USE
BrandNIBCO®
MFG #NL998H4
Keller #228490
