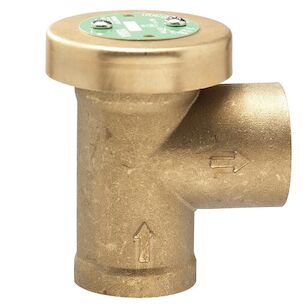

1 1/4 IN Brass Anti-Siphon Vacuum Breaker Backflow Preventer for Irrigation Systems
1 1/4 IN Brass Anti-Siphon Vacuum Breaker Backflow Preventer for Irrigation Systems
1 1/4 IN Brass Anti-Siphon Vacuum Breaker Backflow Preventer for Irrigation Systems
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$518.50Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
ApplicationFor Irrigation Systems
Backflow Preventer TypeVacuum Breaker
Depth5.56"
Disc MaterialSilicone
Height3.25"
IndustryPlumbing
Inlet Connection Size1-1/4"
Inlet Connection Size Metric32 mm
Inlet Connection TypeFemale Threaded
Inlet Thread TypeNPT
MaterialBrass
Maximum Temperature Deg F180
Maximum Working Pressure Psi125
Outlet Connection Size1-1/4"
Outlet Connection Thread TypeNPT
Outlet Connection TypeFemale Threaded
Pressure OperationNon Continuous
Prop 65 WarningYes
Protection TypeBacksiphonage
Series188A
Weight2.1 lbs.
Width3.13"
Shipping Dimensions (L x W x H)5.562" x 3.13" x 3.25"
Features & Benefits
- Durable brass body
- Ideal for irrigation systems
- Female NPT inlet and outlet
- Easy to install
Documents
Marketing Information
This 1 1/4 inch anti-siphon vacuum breaker backflow preventer helps prevent the backsiphonage of contaminated water from entering into the potable water supply. It is ideal for low flow non-continuous pressure installations such as residential irrigation systems or laboratory equipment. This vacuum breaker consists of a brass body with bronze internal trim, chemical resistant seat disc and an atmospheric vent to prevent spilling. The durable silicone disc is suitable for temperatures up to 180 degrees F (82 degrees C) and ensures tight seating with the lightest of seating contacts. The maximum working pressure is 125 psi (8.6 bar).
