ASME Specified

• Proprietary steel formulation with two-coats of high-temperature porcelain enamel to maximize corrosion-resistance resulting in a superior tank design Two heavy-duty magnesium anode rods are installed for longer tank life ST80 can pass-through a 30 in opening 2 in of Rigid polyurethane foam insulation provides superior insulating qualities resulting in reduced operating costs Our patented process of injecting foam into the insulating cavity adds additional durability and toughness to the baked enamel steel outer jacket 2 in threaded top outlet, 2 in threaded front inlet/outlet connection 2 in NPT on the ST80 and ST120 3/4 in NPT thermometer and aquastat opening Tank opening - 2 in NPT circulating line connection and hot outlet

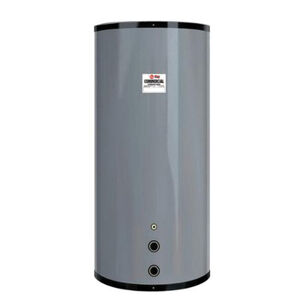

Rheem® commercial storage tanks are vertical tanks designed for applications that require large quantities of hot water in short periods of time. When used in tandem with Rheem® commercial water heating equipment, these storage tanks provide the flexibility needed for many commercial applications. Installed individually or in parallel manifold, these storage tanks can provide 80% draw capability without an appreciable temperature decrease in single temperature applications.
