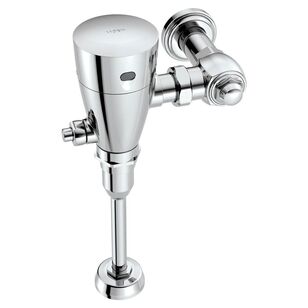

Moen® 8312 Flush Valve, 3/4 in Nominal, IPS, 20 to 125 psi, Brass Body
Moen® 8312 Flush Valve, 3/4 in Nominal, IPS, 20 to 125 psi, Brass Body
Moen® Flush Valve, IPS Connection, 3/4 in Nominal, 20 to 125 psi Pressure, 11 in Inlet to Outlet Length, 3-1/4 in Top to Inlet Center, 1 gpf Flush, Brass Body, Piston Operator, Chrome-Plated, Dimensions: 16-1/4 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$900.20 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandMOEN®
Body MaterialBrass
Connection TypeIPS
Dimensions16-1/4 " H
FinishChrome-Plated
Flush Rate1
Inlet to Outlet Length11
Nominal Size3/4
Operator TypePiston
Pressure Rating20 to 125
Top to Inlet Center3-1/4
Shipping Dimensions (L x W x H)15.7" x 11.8" x 4.1"
Additional Information
ASSE 1037|ASME A112.1037|CSA 125.37|ASME A112.19.2|CSA B45.1|Buy American Act Compliant|ADA Compliant|EPA Certified|IAPMO Certified
Features & Benefits
- Battery powered, sensor activated, exposed water closet flushometer with brass angle stop valve Brass construction with chrome-plated finish Chloramine-resistant seals 3/4 in IPS inlet supply 3/4 in top spud High back pressure vacuum breaker All flush valves are intended for use with compatible flush volume fixtures as specified by the fixture manufacturer WaterSense® labeled flush valves should be used with a WaterSense® labeled fixture that has a compatible flush volume to ensure complete system performance Self-cleaning AccuSet™ piston flush technology Mechanical override Adjustable infrared sensor range from 15 in Battery life up to 8 years Low battery indicator light Vandal-resistant angle stop and double O-ring connections
Moen® 8312 Flush Valve, 3/4 in Nominal, IPS, 20 to 125 psi, Brass Body
BrandMOEN®
MFG #8312
Keller #230907
