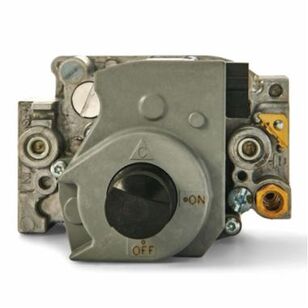

resideo VR8304 Series VR8304M4507/U Gas Valve, 3/4 in Inlet, 3/4 in Outlet, NPT End, 30000 to 300000 Btu/hr Nominal
resideo VR8304 Series VR8304M4507/U Gas Valve, 3/4 in Inlet, 3/4 in Outlet, NPT End, 30000 to 300000 Btu/hr Nominal
resideo Gas Valve, VR8304 Series, 3/4 in Inlet, 3/4 in Outlet, NPT End, 30000 to 300000 Btu/hr Nominal Capacity, Natural Gas, Intermittent Pilot Ignition, 0.5 psi, -40 to 175 deg F, 24 V, 60 Hz, Male Quick-Connect Electrical Connection, 2-11/16 in Overall Length, 4-1/16 in Overall Width, 5-3/8 in Overall Height, Additional Information: Standard Opening
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$529.39Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Additional InformationStandard Opening
Electrical ConnectionMale Quick-Connect
End TypeNPT
Frequency Rating60
Gas TypeNatural Gas
Ignition TypeIntermittent Pilot
Includes(1) Safety Shutoff, (1) Manual Valve, (2) Automatic Operators, (1) Pressure Regulator, (1) Pilot Adjustment, (2) 3/4 x 1/2 in Reducer Bushings and (1) Natural to Liquid Propane Gas Conversion Kit
IndustryHVAC
Inlet Size3/4
Nominal Capacity30000 to 300000
Outlet Size3/4
Overall Height5-3/8
Overall Length2-11/16
Overall Width4-1/16
Pressure Rating0.5
SeriesVR8304 Series
Temperature Rating-40 to 175
Voltage Rating24
Warranty12 Month
Shipping Dimensions (L x W x H)100" x 100" x 100"
Additional Information
CSA 112395|UL MCCZ2.MH5323
Features & Benefits
- Use with S86F, H/S860D/S8600F, H/S8610/S90A, B control modules Compact size Provide two-automatic valves Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends Diaphragm operated second automatic valve opens under control of the regulator, closes if gas or power supply is interrupted Meet codes requiring dual safety shut-off All adjustments, wiring connections and pilot outlet are accessible from top of control Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure Compatible with ECO connector On-off lighting sequence
Marketing Information
Combination gas control for use in 24 V gas-fired, intermittent pilot appliances with capacities from 30 to 415 cfh.
resideo VR8304 Series VR8304M4507/U Gas Valve, 3/4 in Inlet, 3/4 in Outlet, NPT End, 30000 to 300000 Btu/hr Nominal
BrandHoneywell
MFG #VR8304M4507/U
Keller #230986
