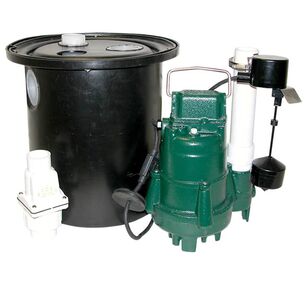

Zoeller® 135-0005 Drain Pump, 115 V, 8.5 A, 4/16 hp, 69 gpm, 38 ft Max Feet of Head, Cast Iron, Powder-Coated Epoxy
Zoeller® 135-0005 Drain Pump, 115 V, 8.5 A, 4/16 hp, 69 gpm, 38 ft Max Feet of Head, Cast Iron, Powder-Coated Epoxy
Zoeller® Drain Pump, Model: WM152, 115 V, 8.5 A, 60 Hz Frequency, HP Rating: 4/16 hp, 3450 rpm Speed, 69 gpm Flow Rate, Phase: 1 ph, 1-1/2 in Discharge, 15 ft Cord Length, 38 ft Maximum Feet of Head, Ball/Sleeve Bearing, 130 deg F, Thermoplastic Impeller, Cast Iron, 15-1/4 in L x 15 in W x 15-1/4 in H Dimensions, Powder-Coated Epoxy
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,398.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandZoeller®
Amperage Rating8.5
Bearing TypeBall/Sleeve
Cord Length15
Dimensions15-1/4 " L x 15 " W x 15-1/4 " H
Discharge Size1-1/2
FinishPowder-Coated Epoxy
Flow Rate69
Frequency Rating60
HP Rating4/16
Impeller MaterialThermoplastic
MaterialCast Iron
Maximum Feet of Head38
ModelWM152
Phase1
Speed Rating3450
Temperature Rating130
Voltage Rating115
Shipping Dimensions (L x W x H)15.25" x 15" x 15.25"
Additional Information
cCSAus Certified|SSPMA Certified|UL Listed
Features & Benefits
- Automatic pumps with tank cord seals and all hardware for easy assembly Polypropylene basin and lid Internal discharge pipe to lid High head Passes laundry lint Durable, cast iron construction Corrosion-resistant, powder-coated epoxy finish Stainless steel lifting handle Assembled with stainless steel bolts Non-clogging engineered thermoplastic vortex impeller design Passes 3/4 in (19 mm) spherical solids Motor 3450 rpm, oil-filled, hermetically sealed, automatic reset thermal overload protected carbon/ceramic seals Upper sleeve and lower ball bearing running in bath of oil 15 ft (5 m), power cord with molded, 3-wire plug and wired-in, vertical float switch
Documents
Marketing Information
The high capacity, 4/10 HP Model 135 Drain Pump is a dependable choice for high head and high flow sink drain applications when a gravity drain is not accessible. Avoid breaking concrete when finishing a space by using the Model 135 Drain Pump which is ideal for handling the wastewater from a sink drain in a kitchen, under a utility sink, and more.
Zoeller® 135-0005 Drain Pump, 115 V, 8.5 A, 4/16 hp, 69 gpm, 38 ft Max Feet of Head, Cast Iron, Powder-Coated Epoxy
BrandZoeller®
MFG #135-0005
