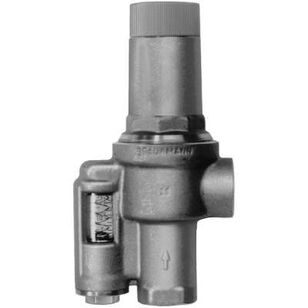

resideo D146M1040 Differential Pressure Regulator, 1-1/4 in, FNPT, 50 gpm, 85 psi, Brass
resideo D146M1040 Differential Pressure Regulator, 1-1/4 in, FNPT, 50 gpm, 85 psi, Brass
resideo Differential Pressure Regulator, 1-1/4 in Nominal, FNPT Connection, 50 gpm Flow Rate, 85 psi, Brass, 395000 Btu/hr Nominal Capacity, 230 deg F, 8-1/2 in H x 4-1/4 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$955.76Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Connection TypeFNPT
Dimensions8-1/2 " H x 4-1/4 " W
Flow Rate50
IndustryHVAC
MaterialBrass
Nominal Capacity395000
Nominal Size1-1/4
Pressure Rating85
Temperature Rating230
Features & Benefits
- Install between supply and return sides of a hydronic system to stabilize pressure differential and reduce the effects of demand changes Control maintains a constant differential between the two sides by opening a bypass whenever the difference between supply and return reaches the setpoint Provides silent, trouble-free service Easy installation requires no electrical hookup Easy adjustment of pressure by turning regulating cap Built-in differential pressure indicator Brass valve body with thermoplastic and stainless steel parts Diaphragm of EPDM
Marketing Information
The differential pressure regulator eliminates excessive pump head pressure, when most radiator valves are closed due to reduced demand, by controlling flow through a bypass line when the difference between supply/return exceeds the setpoint.
resideo D146M1040 Differential Pressure Regulator, 1-1/4 in, FNPT, 50 gpm, 85 psi, Brass
BrandHoneywell
MFG #D146M1040
