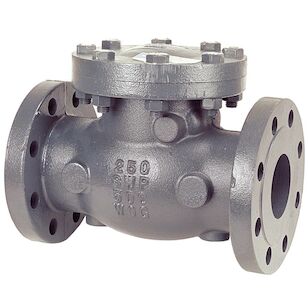

F968B 3 FLG CHECK CAST IRON
F968B 3 FLG CHECK CAST IRON
F968B 3 FLG CHECK CAST IRON
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$6,514.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
All ApplicationsFire Protection
All Basic MaterialCast Iron
All Type Of ItemValve
ApplicationsFire Protection
End ConnectionFlanged
Height8.25"
IndustryPlumbing
Length12.5"
Made in USATrue
MaterialCast Iron
Mpg21
Nominal Pipe Size3
Nominal Size 13".
Prop 65 WarningYes
Seat Seal MaterialBronze
Size Dimensions3".
Turns OperationsNon-Manual
Type Of Check ValveSwing
Type Of ValveCheck Valve
Valve End Connection TypeF -- Flanged
Valve Multi Turn Bonnet DesignBolted Bonnet
Valve Pressure Rating Cwp500 PSI/34.5 Bar CWP
Valve Pressure Rating Swp250 PSI/17.2 Bar SWP
Valve Pressure Rating Wwp500 PSI/34.5 Bar WWP
Valve Trim PackageBronze Trim
Weight76.97 lbs.
Width10.25"
Features & Benefits
- 250 psi/17.2 bar saturated steam to 406 degreeF/207 degreeC
- 500 psi/34.5 bar non-shock cold working pressure
- Bolted bonnet
- Renewable bronze seat and disc
- Class 250 flanged end connections
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-71 Type 1
- Approved by the New York City BSA 143-69-SA at 350 psi non-shock cold water
Documents
Marketing Information
The NIBCO cast iron check valve features flanged end connections for easy installation. It is equipped with a bolted bonnet for maintenance accessibility. The swing check valve includes a renewable cast bronze seat and disc. Swing checks may be installed in horizontal positions (or vertical with flow moving up). Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO valves are backed by the NIBCO 5-year 125 Percent limited warranty.
