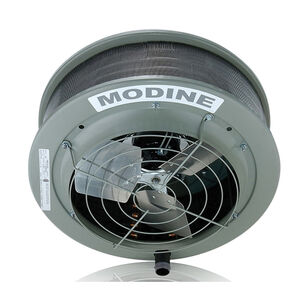

MODINE V279 18500 Steam/Hot Water Vertical Delivery Unit Heater, 115 V, 279000 Btu/hr, 1 ph, Steel
MODINE V279 18500 Steam/Hot Water Vertical Delivery Unit Heater, 115 V, 279000 Btu/hr, 1 ph, Steel
MODINE Steam/Hot Water Vertical Delivery Unit Heater, Model: V279, 279000 Btu/hr, 115 V, 5460 cfm, 1/2 hp, 1 ph, 60 Hz, MNPT Connection, 2 in Connection, 21 in Fan, 1075 rpm Rotational Speed, 37 ft Mounting Height, 45 ft Heat Throw, Steel, Gray/Green, Polyester Powder-Coated, 111 deg F, 34-3/4 in Dia
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,753.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandMODINE
BTU Rating279000
CFM Rating5460
ColorGray/Green
Connection Size2
Connection TypeMNPT
Dimensions34-3/4 " Dia
Fan Size21
FinishPolyester Powder-Coated
Frequency Rating60
Heat Throw45
HP Rating1/2
IndustryHVAC
MaterialSteel
ModelV279
Mounting Height37
Phase1
Rotational Speed1075
Temperature Rating111
Voltage Rating115
Additional Information
cCSAus Certified|CAN/CSA C22.2 File No. 236-05|UL 1995|CRN Registered
Features & Benefits
- Finally, LOT models offer lower airside resistance resulting in greater allowable mounting heights and greater heat throw Design assures the correct relationship between air temperature, velocity and air volume for greater heat throw air is delivered to the floor at maximum mounting height, increasing comfort and reducing fuel costs Units are compact and lightweight, requiring fewer contractor hours to install All units include an electrical junction box, either integral to the motor or mounted on the unit casing, to allow for easy electrical connections All motors are totally enclosed, all single phase and explosion-proof motors include internal overload protection to protect the motor from insulation damaging heat, resulting in longer motor life Different suspension options are available for most units including threaded rod or pipe hanger adapters All units are component tested for proper motor function and the coils are leak tested under pressure to ensure proper function when the unit arrives at the jobsite Quiet operation is assured through the use of carefully selected motors, fans and scientifically designed venturi fan shrouds Casings are treated for corrosion resistance and finished with a neutral gray green baked-on, electrostatically applied polyester powder coat paint finish
Marketing Information
Recommended for a wide range of heating requirements, vertical steam/hot water unit heaters provide downward air delivery. These units may be suspended from up to 54 ft above the floor, depending upon the size of the heater, steam pressure (or hot-water temperature) and air deflector selected.
