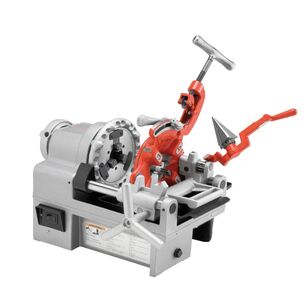

RIDGID® 61142 Power Threading Machine, 1/4 to 1-1/2 in Nominal, 5/16 to 1 in Bolt, 1/2 hp, 115 V, 13 A, 1 ph, 60 Hz
RIDGID® 61142 Power Threading Machine, 1/4 to 1-1/2 in Nominal, 5/16 to 1 in Bolt, 1/2 hp, 115 V, 13 A, 1 ph, 60 Hz
RIDGID® Power Threading Machine, 1/4 to 1-1/2 in Nominal, 5/16 to 1 in Bolt, 1/2 hp, 115 V, 13 A, 1 ph, 60 Hz, 1 Speed, 44 rpm, On/Off Heavy-Duty with Integral Foot Switch, 25-1/2 in L x 14 in W, Additional Information: Model 1215, 44 deg F Temperature Rating
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$6,179.80 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRIDGID®
Additional InformationModel 1215, 44 deg F Temperature Rating
Amperage Rating13
Bolt Size5/16 to 1"
Dimensions25-1/2 " L x 14 " W
Frequency Rating60
HP Rating1/2
IndustryPlumbing
Nominal Size1/4 to 1-1/2"
Number of Speeds1
Phase1
Speed Rating44
Switch TypeOn/Off Heavy-Duty with Integral '
Voltage Rating115
Shipping Dimensions (L x W x H)26.5" x 18.5" x 18.3"
Additional Information
CSA Certified|UL Listed
Features & Benefits
- One piece aluminum base with built-in handles and 80-lb design allow for easy transport. One-piece aluminum housing creates a durable machine. Through head oiling combined with adjustable oil flow control sets the oiling for best threading performance . Integral foot switch hanger for convenient storage during transport. Includes dies, die head, reamer and cutter Through die head oiling. Adjustable oil flow control. Pipe Capacity: 1/4 in-1 1/2 in (6mm-37mm) Bolt Capacity: 5/16 in-1 in (6mm-25mm) Motor Control: On/off heavy-duty switch and integral foot switch Front Chuck: Hammer type with replaceable rocker action jaw inserts Rear Centering Device: Cam action Oiling: Through die head adjustable Pump: Self-priming constant flow, gerotor type
Marketing Information
A compact lightweight design and a powerful electric motor makes the RIDGID Model 1215 Hammer Chuck Threading Machine incredibly versatile. An integral oiling system provides consistent through die-head lubrication. Includes RIDGID universal alloy Die Heads to create clean and precision threads on 1/4 to 1-1/2-inch diameter pipes.
RIDGID® 61142 Power Threading Machine, 1/4 to 1-1/2 in Nominal, 5/16 to 1 in Bolt, 1/2 hp, 115 V, 13 A, 1 ph, 60 Hz
BrandRIDGID®
MFG #61142
