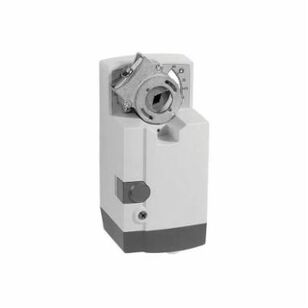

Honeywell MN7234A2008 Damper Actuator, 24 V/2 - 10 V, 4 to 20 mA, 95 s Timing, Plastic

Name: Honeywell MN7234A2008 Damper Actuator, 24 V/2 - 10 V, 4 to 20 mA, 95 s Timing, Plastic
Brand: Honeywell
SKU: 251615
Price: 847.42 USD
Availability: OutOfStock

Honeywell

Honeywell MN7234A2008 Damper Actuator, 24 V/2 - 10 V, 4 to 20 mA, 95 s Timing, Plastic

MFG #MN7234A2008

Item #251615

Mfr. Part #MN7234A2008

UPC #

Honeywell Damper Actuator, 4 to 20 mA, 24 V/2- 10 V, 50/60 Hz, VA Rating: 8 VA, Screw Terminal Electrical Connection, 95 s Timing Range, Plastic, 300 in-lb, 354 in-lb Max Stall Torque, -40 to 175 deg F Storage, -5 to 140 deg F Ambient, NEMA 2 Enclosure, 5 to 95% RH Non-Condensing Humidity Rating, 8.78 in H x 3.62 in W x 3.15 in D, Non-Spring Return Action, NPSM Connection, Direct Coupled Mounting, 3/8 to 1.06 in Shaft

Why Create an Account?

Ability to track orders
More Options & Savings
Amazing Customer Service

$847.42 / ea

Out of Stock

Attributes
Additional Information
Features & Benefits
Documents

Attributes

BrandHoneywell

Action TypeNon-Spring Return

Amperage Rating4 to 20

ApplicationFor HVAC systems

Connection TypeNPSM

Dimensions8.78 " H x 3.62 " W x 3.15 " D

Electrical ConnectionScrew Terminal

Enclosure TypeNEMA 2

Frequency Rating50/60

Humidity Rating5 to 95% RH Non-Condensing

IncludesMounting Bracket and Self-Centering Shaft Adapter

IndustryHVAC

MaterialPlastic

Mounting TypeDirect Coupled

Shaft Size3/8 to 1.06

Temperature Rating-40 to 175 deg F Storage, -5 to 140 deg F Ambient

Timing Range95

Torque Rating300 "-lb, 354 "-lb Max Stall

VA Rating8

Voltage Rating24 V/2 - 10 V

Honeywell MN7234A2008 Damper Actuator, 24 V/2 - 10 V, 4 to 20 mA, 95 s Timing, Plastic
