• Allows the use of one common transformer power supply for multiple actuators and controllers Self-contained, motorized valve linkage Linkage self-adjusts to valve stroke of 1/2 to 1 in Multi-positional mounting Strong valve seat closing force 160 ft-lb Compact size for easy installation in confined area One device for either 24 VAC or 28 VDC power supply application Electronic current sensing provides internal protection and positive full closing force Field addable position feedback/auxiliary switch module available (five wire control wiring only) Used with V5011/13, VGF21 and VGF22 up to 3 in, V5045 with 272629A Direct/reverse acting switch comment Screws onto 1/4-28 UNF threaded valve stem-mounting IP54 (mounted in vertical position) environmental, electrical or ingress protection rating 2 to 10 VDC, SuperMod, 135 ohm potentiometer, 4 to 20 mA control signal Stays in place fail-safe mode SPDT with 272630D switch 272630D external auxiliary switch 7/8 in hole for 1/2 in conduit cable

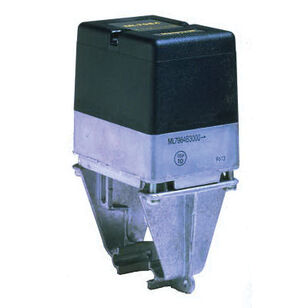

The ML6984 and ML7984 are self-contained, self-adjusting, motorized valve actuators that mount directly onto V5011 two way and V5013 three way globe valves, providing linear stem operation between 1/2 and 1 in. ML6984 is for use with low voltage SPDT series 20, series 60 (on-off) or SP3T series 60 (floating) electro-mechanical and electronic controllers. ML7984 is for use with series 70 0 - 10 VDC, 2 - 10 VDC, 4 - 20 mili-amp, electronic series 90 "SuperMod" and 135 ohm modulating controllers.
