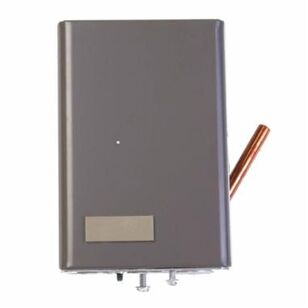

Honeywell L8148E1265 Aquastat Relay, SPST, Vertical Mounting, 150 deg F
Honeywell L8148E1265 Aquastat Relay, SPST, Vertical Mounting, 150 deg F
Honeywell Aquastat Relay, 0.8 A at 24 VAC, 0.25 A at 24 VDC Low Voltage, 44.4 A at 120 VAC, 22.2 A at 240 VAC Locked Rotor, 120 VAC, 60 Hz, 255 psi Immersion Well Operating, Quick Connect, Screw, SPST, Vertical Mount, 150 deg F, 4-5/16 in W x 6-1/8 in H x 3-1/8 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$934.48Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Amperage Rating0.8 A at 24 VAC, 0.25 A at 24 VDC Low Voltage, 44.4 A at 120 VAC, 22.2 A at 240 VAC Locked Rotor
Connection TypeQuick Connect, Screw
Contact ConfigurationSPST
Dimensions4-5/16 " W x 6-1/8 " H x 3-1/8 " D
Frequency Rating60
Mounting TypeVertical
Pressure Rating255 psi Immersion Well Operating
Temperature Rating150
Voltage Rating120
Additional Information
File LR95329-1|Guide MBPR2|Section 2|UL File MP466|UL Listed|Volume 13
Features & Benefits
- High limit opens burner circuit only Select models include transformer and accessory terminals for adding a remote low limit controller Require 24 VAC thermostat with heat anticipator set at 0.2 A (plus current draw of gas valve on L8124E) 1-1/2 - 3 in D insulation Molex plug for use with vent damper, includes heat-conductive compound 15 deg F fixed differential temperature 4-1/2 in L capillary tubing 0 - 95% RH non-condensing environmental conditions
Marketing Information
The L8148 aqua stat relays are immersion type hydronic controllers that combine high limit protection with switching relay control of burner and circulator motors.
