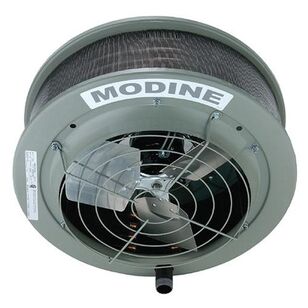

MODINE V42SB01SA 18015 Unit Heater, 115 V, 1.9 A, 42000 Btu/hr, 1 ph, Steel, 15 ft H Mounting
MODINE V42SB01SA 18015 Unit Heater, 115 V, 1.9 A, 42000 Btu/hr, 1 ph, Steel, 15 ft H Mounting
MODINE Unit Heater, Model: V42SB01SA, 42000 Btu/hr, 115 V, 1.9 A, 3.1 gpm Flow Rate, 950 cfm, 1/30 hp, 1 ph, 60 Hz, MNPT Connection, 1-1/4 in Connection, 1050 rpm Rotational Speed, 15 ft Mounting Height, 11 ft Heat Throw, Steel, Gray/Green, Polyester Powder-Coated, 90 deg F, 103 deg F, 24-3/4 in Dia x 7-1/2 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,603.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandMODINE
Amperage Rating1.9
BTU Rating42000
CFM Rating950
ColorGray/Green
Connection Size1-1/4
Connection TypeMNPT
Dimensions24-3/4 " Dia x 7-1/2 " H
FinishPolyester Powder-Coated
Flow Rate3.1
Frequency Rating60
Heat Throw11
HP Rating1/30
IndustryHVAC
MaterialSteel
ModelV42SB01SA
Mounting Height15
Phase1
Rotational Speed1050
Temperature Rating90 deg F, 103 deg F
Voltage Rating115
Additional Information
C/US CSA Certified
Features & Benefits
- Standard coil type and fan guard type Current development sequence Units install quickly, easily and at low cost because they are lightweight, yet are ruggedly constructed to resist rigorous handling and on the job abuse Carefully selected motors and fans with a scientifically designed venturi fan shroud reduce noise levels to a satisfactory minimum A motor heat shield protects the motor from heated air passing through the heater Fans are statically and dynamically balanced Fan and motor assemblies are exposed and can be removed without lowering the unit heater The unit casing is treated for protection against corrosion prior to the application of the attractive gray-green, baked-on polyester powder-coat paint finish A variety of deflector-blade options provides an increased degree of control over air discharge direction Low outlet temperature models are recommended for steam pressure above 30 psi, but can also be used in dirty environments to minimize buildup of air contaminants on the coil 14 in Dia fan
MODINE V42SB01SA 18015 Unit Heater, 115 V, 1.9 A, 42000 Btu/hr, 1 ph, Steel, 15 ft H Mounting
BrandMODINE
MFG #18015
Keller #254474
