NIBCO GD4765-3-3IN GRV BFLY VLV
NIBCO GD4765-3-3IN GRV BFLY VLV

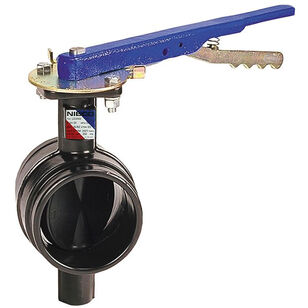

NIBCO® Butterfly Valve With EPDM Liner, GD-4765 Series, 3 in Nominal, Grooved Connection, 300 psi, Water Media, 3.85 in Inlet to Outlet Length, 4.44 in Top to Inlet Center, Iron Body, Polymid Seat, Stainless steel Stem, Ductile Iron Disc, Buna-N/EPDM Softgoods, Quarter Turn Locking Lever Handle Operator, Material Standard: ASTM A395, A582, Finish: Polyamide-Coated, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$950.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Body MaterialIron
Connection TypeGrooved
Disc MaterialDuctile Iron
Domestic/ImportDomestic
FinishPolyamide-Coated
IndustryPlumbing
Inlet to Outlet Length3.85
Material StandardASTM A395, A582
MediaWater
Nominal Size3
Operator TypeQuarter Turn Locking Lever Handle
Pressure Rating300
Seat MaterialPolymid
SeriesGD-4765 Series
Softgoods MaterialBuna-N/EPDM
Stem MaterialStainless Steel
Top to Inlet Center4.44
Warranty5 Year Limited
Shipping Dimensions (L x W x H)12.88" x 9.22" x 5.13"
Additional Information
MSS SP 25/67|NSF/ANSI/CAN 61/372
Features & Benefits
- Stainless steel stem with metal bushings Splined drive Extended neck for up to 2 in of insulation
Documents
Marketing Information
The NIBCO® ductile iron butterfly valve provides ease of operation with quarter-turn (90 deg) open to close. The valve features an EPDM encapsulated ductile iron disc. The internal stem/disc splined drive design eliminates the need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 in. Choose NIBCO® ductile iron butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® butterfly valves are backed by the NIBCO® 5 years 125% limited warranty.
NIBCO GD4765-3-3IN GRV BFLY VLV
BrandNIBCO®
MFG #NLK680F
Keller #25640
