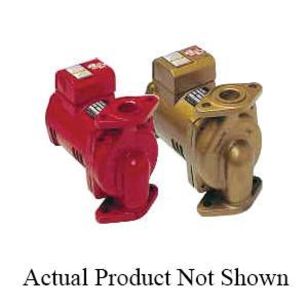

Bell & Gossett PL Series 1BL017LF Maintenance-Free Circulator, 115 V, 60 Hz, 150 psi Max Pressure, 3300 rpm Motor
Bell & Gossett PL Series 1BL017LF Maintenance-Free Circulator, 115 V, 60 Hz, 150 psi Max Pressure, 3300 rpm Motor
Bell & Gossett Maintenance-Free Circulator, Series: PL Series, Model: PL-50B, 115 V, 60 Hz, 150 psi Maximum Pressure, 3300 rpm Motor Speed Rating, 1/6 hp, 1-1/4 in Connection, NPT Connection, 1 ph, 225 deg F, Ball Bearing, Bronze, 9-1/8 in L x 4-3/8 in W x 8-1/2 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,656.92 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBell & Gossett
Bearing TypeBall
Connection Size1-1/4
Connection TypeNPT
Dimensions9-1/8 " L x 4-3/8 " W x 8-1/2 " H
Frequency Rating60
HP Rating1/6
MaterialBronze
Maximum Pressure150
ModelPL-50B
Motor Speed Rating3300
Phase1
SeriesPL Series
Temperature Rating225
Voltage Rating115
Additional Information
ANSI/NSF 372|CSA Certified
Features & Benefits
- B&G's powerful, dry motor design delivers exceptional performance 25% more efficient than competition Precision machined and balanced alloy steel rotor for superior performance Solid stiff-shaft design is constructed of high strength alloy steel impervious to cracking caused by thermal stresses XL-11™ precision crafted bearing system Permanently oil lubricated Completely maintenance-free Advanced close coupled design increases pump life and efficiency, assures dependable seasonal start ups and can easily handle difficult water conditions Tough, durable seal system features a carbon/silicon carbide seal on a stainless steel shaft sleeve for long life and rugged operation Double-sided stainless steel neck ring for optimum efficiency
Documents
Marketing Information
The Series PL close coupled booster pumps are specifically designed for quiet operation in hydronic, radiant and geothermal heating and cooling systems. These inline permanently lubricated pumps are available in cast iron or lead-free bronze body construction.
Bell & Gossett PL Series 1BL017LF Maintenance-Free Circulator, 115 V, 60 Hz, 150 psi Max Pressure, 3300 rpm Motor
BrandBell & Gossett
MFG #1BL017LF
Keller #263054
