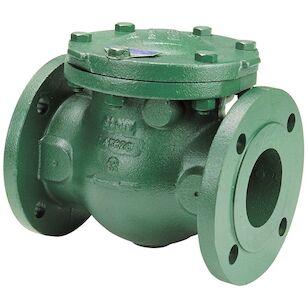

F93831 4 FLG CK DI
F93831 4 FLG CK DI
F93831 4 FLG CK DI
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,423.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
All ApplicationsFire Protection
All Basic MaterialDuctile Iron
All Type Of ItemValve
ApplicationsFire Protection
End ConnectionFlanged
Height9"
IndustryPlumbing
Length11.5"
Made in USATrue
MaterialDuctile Iron
Mpg27
Nominal Pipe Size4
Nominal Size 14".
Prop 65 WarningYes
Seat Seal MaterialBronze
Size Dimensions4".
Turns OperationsNon-Manual
Type Of Check ValveSwing
Type Of ValveCheck Valve
Valve End Connection TypeF -- Flanged
Valve Multi Turn Bonnet DesignBolted Bonnet
Valve Pressure Rating Cwp285 PSI/19.7 Bar CWP
Valve Pressure Rating Swp185 PSI/12.8 Bar SWP
Valve Pressure Rating Wwp285 PSI/19.7 Bar WWP
Valve Trim PackageBronze Trim
Weight81.06 lbs.
Width10.63"
Features & Benefits
- 250 psi/17.2 bar non-shock cold working pressure
- 150 psi/10.3 bar saturated steam to 366 degreeF/185 degreeC
- Iron body, bronze mounted (IBBM)
- Bolted bonnet
- Renewable seat and disc
- Bronze mounted trim
- Class 150 flanged end connections
- Conforms to MSS SP-136
Documents
Marketing Information
With its ductility, the valve displays higher physical properties than standard grey cast iron. Swing checks may be installed in horizontal positions (or vertical with flow moving up). Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO check valves are backed by the NIBCO 5-year 125 Percent limited warranty.
