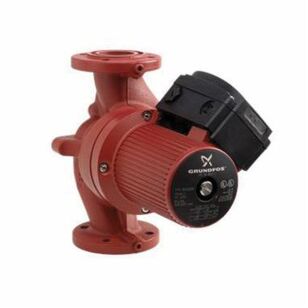

Grundfos UPS Series UPS 40-160 F 96402783 Circulator Pump, 13 to 110 gpm, 890 W, 230 V, 3.45 to 4.2 A, 60 Hz, Iron
MFG #96402783
Item #273033
Mfr. Part #96402783
UPC #5700390681258
Grundfos Circulator Pump, UPS Series, Model: UPS 40-160 F, 13 to 110 gpm Flow Rate, 52-1/2 ft Maximum Head, 890 W, 230 V, 3.45 to 4.2 A, 60 Hz, 145 psi Maximum Pressure, 3463 rpm Motor Speed Rating, 0.925 hp, 1-1/2 in Connection, Flanged Connection, 1 ph Phase, 2 Poles, -10 to 120 deg C, X4D Enclosure, Carbon Axial, Ceramic Radial Bearing, Iron, 292 mm H x 297 mm W, Additional Information: H Insulation Class, 292 mm L Port, Stainless Steel Impeller Material
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$4,131.00Â /Â ea
Out of Stock
Attributes
Additional Information
Features & Benefits
Documents
Marketing Information
Attributes
BrandGrundfos
Additional InformationH Insulation Class, 292 mm L Port, Stainless Steel Impeller Material
Amperage Rating3.45 to 4.2
Bearing TypeCarbon Axial, Ceramic Radial
Connection Size1-1/2
Connection TypeFlanged
Dimensions292 mm H x 297 mm W
Enclosure TypeX4D
Flow Rate13 to 110
Frequency Rating60
HP Rating0.925
MaterialIron
Maximum Head52-1/2
Maximum Pressure145
ModelUPS 40-160 F
Motor Speed Rating3463
Number of Poles2
Phase1
Power Rating890
SeriesUPS Series
Temperature Rating-10 to 120
Voltage Rating230
Additional Information
cUL Listed
Features & Benefits
Three-speed motor
Stainless steel rotor can, bearing plate and rotor cladding
Aluminum alloy stator housing
Cast iron pump housing
Stator with built-in thermal switch
Grundfos UPS three-speed circulator pumps are designed for circulation of liquids in heating and air conditioning systems and are also used for central and district heating systems. The UPS pumps provide reliable and maintenance-free operation as well as a low noise level and energy consumption.
