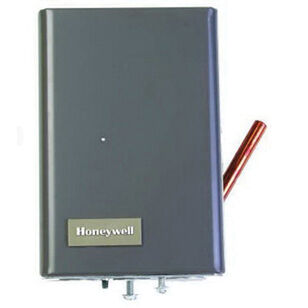

Honeywell L8148E1299/U Aquastat Relay, SPST, Vertical Mounting
Honeywell L8148E1299/U Aquastat Relay, SPST, Vertical Mounting
Honeywell Aquastat Relay, 120 VAC, 60 Hz, 255 psi Immersion Well, 4-1/2 in Capillary Length, Quick Connect/Screw, Burner (mV): 0.25 A at 0.25 to 12 VDC, Full Load: 0.8 A at 24 VAC, Line Voltage: 7.4 A at 120 VAC, 3.7 A at 240 VAC, Locked Rotor: 44.4 A at 120 VAC, 22.7 A at 240 VAC, Circulator (Full Load): 7.4 A at 120 VAC, 3.7 A at 240 VAC, Locked Rotor: 44.4 A at 120 VAC, 22.2 A at 240 VAC Contact, SPST, Vertical Mount, 180 to 240 deg F, 150 deg F at 1.2 A 24 V Load, 77 deg F at 1.4 A 24 V Load, 15 deg F Fixed Differential, 4-5/16 in W x 6-1/8 in H x 3-1/8 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$893.60Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
Brandresideo
Capillary Length4-1/2
Connection TypeQuick Connect/Screw
Contact ConfigurationSPST
Contact RatingBurner (mV): 0.25 A at 0.25 to 12 VDC, Full Load: 0.8 A at 24 VAC, Line Voltage: 7.4 A at 120 VAC, 3.7 A at 240 VAC, Locked Rotor: 44.4 A at 120 VAC, 22.7 A at 240 VAC, Circulator (Full Load): 7.4 A at 120 VAC, 3.7 A at 240 VAC, Locked Rotor: 44.4 A at 12
Dimensions4-5/16 " W x 6-1/8 " H x 3-1/8 " D
Frequency Rating60
Mounting TypeVertical
Pressure Rating255 psi Immersion Well
Temperature Rating180 to 240 deg F, 150 deg F at 1.2 A 24 V Load, 77 deg F at 1.4 A 24 V Load, 15 deg F Fixed Differential
Voltage Rating120
Additional Information
3|CSA LR95329-1 Certified|File MP466|Guide MBPR2|II|Section 2|TOLUENE|UL Listed|UN 1294|Volume 13
Features & Benefits
- High limit opens burner circuit only Select models include transformer and accessory terminals for adding a remote low limit controller Require 24 VAC thermostat with heat anticipator set at 0.2 A (plus current draw of gas valve on L8124E) 1-1/2 - 3 in less well Immersion-type controllers that combine high limit protection with switching relay control of burner and circulator motors 0 - 95% RH non-condensing environmental conditions
Honeywell L8148E1299/U Aquastat Relay, SPST, Vertical Mounting
Brandresideo
MFG #L8148E1299/U
Keller #273272
