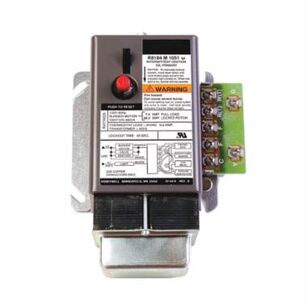

Honeywell Protectorelay R8184M1051 Oil Burner Control, 120 - 240 VAC
Honeywell Protectorelay R8184M1051 Oil Burner Control, 120 - 240 VAC
Honeywell Protectorelay Oil Burner Control, 120 - 240 VAC, 7.4 A at 120 VAC, 3.7 A at 240 VAC Full Load, 44.4 A at 120 VAC, 22.2 A at 240 VAC Locked Rotor, -40 to 54 deg C, 4-1/8 in W x 4-3/8 in H x 2-1/2 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$616.76Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Amperage Rating7.4 A at 120 VAC, 3.7 A at 240 VAC Full Load, 44.4 A at 120 VAC, 22.2 A at 240 VAC Locked Rotor
ApplicationFor Boilers
Dimensions4-1/8 " W x 4-3/8 " H x 2-1/2 " D
IndustryHVAC
Series80 Series
Temperature Rating-40 to 54
Voltage Rating120 - 240
Warranty24 Month
Additional Information
UL MP268, MCCZ2
Features & Benefits
- Operates the oil burner and oil valve (if desired) in response to a call for heat from a low voltage control circuit Intermittent ignition is on while the burner is on Solid state flame sensing circuit External button to manually reset safety switch after lockout Enclosed safety switch must be manually reset after safety shutdown Mounts on standard 4 x 4 in junction box C554A cadmium sulfide flame detector and 24 VAC thermostat required R8184M includes 40 V-A transformer and Y and G terminals for connection of cooling equipment
Honeywell Protectorelay R8184M1051 Oil Burner Control, 120 - 240 VAC
BrandHoneywell
MFG #R8184M1051/U
Keller #274061
