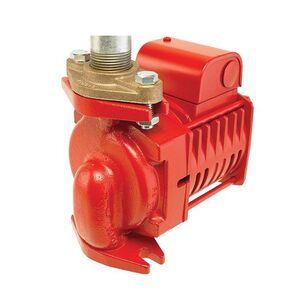

ARMSTRONG E.2 Series 182202-657 Circulator, 38 gpm, 125 W, 120 V, 2 A, 60 Hz, 150 psi Max Pressure, 3400 rpm Motor
ARMSTRONG E.2 Series 182202-657 Circulator, 38 gpm, 125 W, 120 V, 2 A, 60 Hz, 150 psi Max Pressure, 3400 rpm Motor
ARMSTRONG Circulator, Series: E.2 Series, Model: E8.2, 38 gpm Flow Rate, 34 ft Maximum Head, 125 W, 120 V, 2 A, 60 Hz, 150 psi Maximum Pressure, 3400 rpm Motor Speed Rating, 1/6 hp, 1-1/4 in Connection, 2-Bolt Flange Connection, 1 ph, 2 Poles, 230 deg F, Cast Iron, Painted, Red, 7.1 in L x 6.4 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$342.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandARMSTRONG
Amperage Rating2
ColorRed
Connection Size1-1/4
Connection Type2-Bolt Flange
Dimensions7.1 " L x 6.4 " H
FinishPainted
Flow Rate38
Frequency Rating60
HP Rating1/6
IndustryHydronics
MaterialCast Iron
Maximum Head34
Maximum Pressure150
ModelE8.2
Motor Speed Rating3400
Number of Poles2
Phase1
Power Rating125
SeriesE.2 Series
Temperature Rating230
Voltage Rating120
Additional Information
cULus Listed|NSF 372
Features & Benefits
- Easy installation and upgrades - compact design minimizes flange to flange dimensions and spool pieces provide compatibility with a wide range of competing circulators Leading-duty point efficiency - advanced, high efficiency dry motor and efficient hydraulics design Long term performance - lasting components and refined product design for extended durability and low lifetime cost Easy maintenance and repair - easy access to mechanical seal and seal replacement in less than 5 min
Marketing Information
The ARMSTRONG E.2 circulators draw on advanced motor technology and efficient hydraulic design to achieve excellent wire-to-water duty point efficiencies.
ARMSTRONG E.2 Series 182202-657 Circulator, 38 gpm, 125 W, 120 V, 2 A, 60 Hz, 150 psi Max Pressure, 3400 rpm Motor
BrandARMSTRONG
MFG #182202-657
Keller #274616
My Part ##
Last Ordered#
$342.00Â /Â ea
