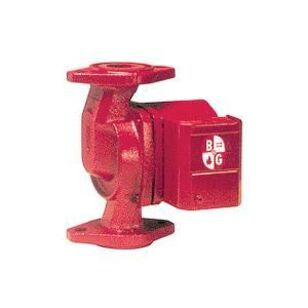

Bell & Gossett NRF-9F/LW NRF9FLW Circulator Pump, 41 W, 115 V, 0.4 A, 60 Hz, 150 psi Max Pressure, 2800 rpm Motor, Iron
Bell & Gossett NRF-9F/LW NRF9FLW Circulator Pump, 41 W, 115 V, 0.4 A, 60 Hz, 150 psi Max Pressure, 2800 rpm Motor, Iron
Bell & Gossett Circulator Pump, Model: NRF-9F/LW, 41 W, 115 V, 0.4 A, 60 Hz, 150 psi Maximum Pressure, 2800 rpm Motor Speed Rating, 1/40 hp, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Connection, Flanged Connection, 1 ph Phase, 40 to 240 deg F, Carbon Bearing, Iron, 5-1/8 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$281.03Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBell & Gossett
Amperage Rating0.4
Bearing TypeCarbon
Connection Size3/4 ", 1 ", 1-1/4 ", 1-1/2 "
Connection TypeFlanged
Dimensions5-1/8 " L
Frequency Rating60
HP Rating1/40
IndustryHydronics
MaterialIron
Maximum Pressure150
ModelNRF-9F/LW
Motor Speed Rating2800
Phase1
Power Rating41
Temperature Rating40 to 240
Voltage Rating115
Additional Information
CSA Certified|cULus Listed
Features & Benefits
- High starting torque for dependable seasonal start-ups (up to 80% more than competing circulators) Unique B&G DuraGlide bearing system assures years of trouble-free start-ups Closed impeller design improves operating efficiency Backed by B&G representatives and a 3 years warranty the best in the business DuraGlide bearing system incorporates several components working together to eliminate seasonal freeze-up Stabilized, heat-resistant, polypropylene impeller, its closed design improves operating efficiency Self-cleaning particle shield protects the shaft and bearings from system start-up debris One-piece, high nickel stainless steel stator can isolates the stator from system fluid and maintains precision bearing alignment for longer bearing life Carbon bearings, diamond-like ceramic shaft and generous clearances are more resistant to lime, chloride and oxide build-up Faceplate and rotor sleeve feature corrosion-resistant stainless steel construction for longer life
Documents
Marketing Information
A residential or light commercial, maintenance-free, axial flanged, in-line, cast iron, wet rotor circulation pump for hydronic heating systems. UL and cUL Listed.
Bell & Gossett NRF-9F/LW NRF9FLW Circulator Pump, 41 W, 115 V, 0.4 A, 60 Hz, 150 psi Max Pressure, 2800 rpm Motor, Iron
BrandBell & Gossett
MFG #103267
Keller #276260
My Part ##
Last Ordered#
$281.03Â /Â ea
