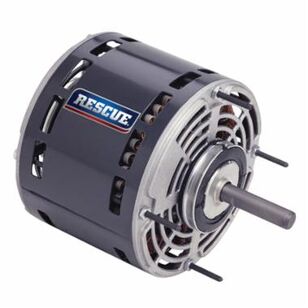

US Motors® 5460 Fan and Blower Motor, 115 V, 7.3/6.9/5.5/3.6/2.8 A, 1/2 hp, 1/3 hp, 1/4 hp, 1/5 hp, 1/6 hp, 1 ph-Phase

Name: US Motors® 5460 Fan and Blower Motor, 115 V, 7.3/6.9/5.5/3.6/2.8 A, 1/2 hp, 1/3 hp, 1/4 hp, 1/5 hp, 1/6 hp, 1 ph-Phase
Brand: EMERSON™
SKU: 276726
Price: 166.89 USD
Availability: InStock

EMERSON™

US Motors® 5460 Fan and Blower Motor, 115 V, 7.3/6.9/5.5/3.6/2.8 A, 1/2 hp, 1/3 hp, 1/4 hp, 1/5 hp, 1/6 hp, 1 ph-Phase

MFG #5460

Item #276726

Mfr. Part #5460

UPC #

US Motors® Fan and Blower Motor, 115 V, 7.3/6.9/5.5/3.6/2.8 A, 1/2 hp, 1/3 hp, 1/4 hp, 1/5 hp, 1/6 hp, 1085 to 1100 rpm, 1 ph Phase, 60 Hz, Open Air Over Motor Enclosure, 48Y Frame, 1/2 in Dia x 5 in L Shaft, Reversible Rotation, 4 Speed, 65.9 % Efficiency, Ball Bearing, Hub Ring Mounting, Direct Drive, Continuous, Class B Insulation Class, 6-Poles, 1 Service Factor, Rolled Steel, 40 deg C, 5.625 in Dia x 9.8 in L

Why Create an Account?

Ability to track orders
More Options & Savings
Amazing Customer Service

$166.89 / ea

In Stock

Attributes
Additional Information
Features & Benefits
Documents

Attributes

BrandEMERSON™

Amperage Rating7.3/6.9/5.5/3.6/2.8

ApplicationFor residential and commercial direct drive fans and blowers applications

Bearing TypeBall

Dimensions5.625 " Dia x 9.8 " L

Drive TypeDirect

Duty TypeContinuous

Efficiency65.9

Frame Size48Y

Frequency Rating60

HP Rating1/2 hp, 1/3 hp, 1/4 hp, 1/5 hp, 1/6 hp

Includes2-1/2 in Dia Hub Rings

Insulation ClassClass B

MaterialRolled Steel

Motor Enclosure TypeOpen Air Over

Mounting TypeHub Ring

Number of Poles6

Number of Speeds4

Phase1

Rotation TypeReversible

Service Factor1

Shaft Size1/2 " Dia x 5 " L

Speed Rating1085 to 1100

Temperature Rating40

Voltage Rating115

Shipping Dimensions (L x W x H)15" x 6.5" x 6"
