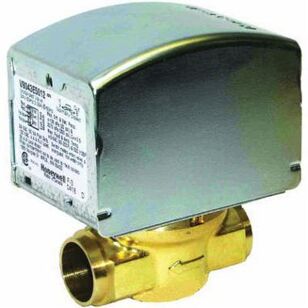

Honeywell 5000 Series V8043F5093/U Motorized Zone Valve, 3/4 in, Sweat, 8 Cv, Brass
MFG #V8043F5093/U
Item #282362
Mfr. Part #V8043F5093/U
UPC #085267833585
Honeywell Motorized Zone Valve, 5000 Series, 3/4 in Nominal, Sweat Connection, Number of Ways/Position: 2-Ways, 2-Position, 300 lbf/sq-in, 8 Cv Flow Coefficient (Cv), Stainless Steel Stem, Buna-N Trim, EPDM Packing, Buna-N Disc, Brass Seat, EPDM Seal, Brass, On-Off Actuator, 7.2 VA Power Consumption, Hot or Chilled Water Service, Normally Open, Normally Closed, 0.32 A, 24 VAC, 125 deg F, 4-3/8 in H x 3-1/2 in W x 2-3/8 in D
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$386.50Â /Â ea
In Stock
Attributes
Additional Information
Features & Benefits
Documents
Attributes
Brandresideo
Actuator TypeOn-Off
Amperage Rating0.32
ConfigurationNormally Open, Normally Closed
Connection TypeSweat
Dimensions4-3/8 " H x 3-1/2 " W x 2-3/8 " D
Disc MaterialBuna-N
Flow Coefficient (Cv)8
MaterialBrass
Nominal Size3/4
Number of Ways/Position2-Ways, 2-Position
Packing MaterialEPDM
Power Consumption7.2
Pressure Rating300
Seal MaterialEPDM
Seat MaterialBrass
Series5000 Series
Service TypeHot or Chilled Water
Stem MaterialStainless Steel
Temperature Rating125
Trim MaterialBuna-N
Voltage Rating24
Additional Information
UL Listed, CSA C/US, file 1322
Features & Benefits
Two way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water
Manual opener for valve operation on power failure, valve returns to automatic position when power is restored
All model may be installed without disassembling the valve
Compact construction for easy installation
Complete power head may be removed or replaced without breaking plumbing line connections or draining the system
Quick fit pushbutton powerhead makes it easy to remove for service
Innovative motor technology offers silent operation, water hammer resist and longer life
The valve can be mounted in any position on a vertical line
Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water
15 s nominal open timing
Screw terminal block electric connection
Spring return to close valve action
No SPST auxiliary end switch
50 VA pilot-duty at 24 V, 4.4 a running with 26.4 A inrush at 120 V end switch rating
Buna-N (NBR) rubber plug
Brass case, sector gears, stainless steel cover actuator
