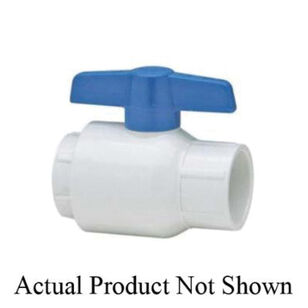

SPEARS 2621-007G 3/4 UTIL BALL VLV
SPEARS 2621-007G 3/4 UTIL BALL VLV
Spears® Ball Valve, 3/4 in Nominal, Threaded Connection, 150 psi, Water Media, 2-29/32 in Inlet to Outlet Length, 2 in Top to Inlet Center, Lever Handle Operator, 91 Cv Flow Coefficient (Cv), Material Standard: ASTM D1784, PVC Body, HDPE/PTFE Seat, HDPE/PTFE Trim, Polypropylene Handle, HDPE/PTFE Softgoods, Gray, 73 deg F, 2-29/32 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$24.48 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSpears®
ApplicationFor potable water service
Body MaterialPVC
ColorGray
Connection TypeThreaded
Dimensions2-29/32 " L
Domestic/ImportDomestic
Flow Coefficient (Cv)91
Handle MaterialPolypropylene
IndustryPlumbing
Inlet to Outlet Length2-29/32
Material StandardASTM D1784
MediaWater
Nominal Size3/4
Operator TypeLever Handle
Pressure Rating150
Seat MaterialHDPE/PTFE
Softgoods MaterialHDPE/PTFE
Temperature Rating73
Top to Inlet Center2
Trim MaterialHDPE/PTFE
Additional Information
NSF Certified
Features & Benefits
- Chemical and corrosion-resistant PVC or CPVC construction Economical sealed unit SCH 80 full bore design High-impact polypropylene handle Spears® single O-ring Safe-T-Shear® stem design PTFE/HDPE floating seat design NSF® certified for potable water use Assembled with silicone-free, water soluble lubricant
Documents
Marketing Information
A high-quality, economical 1/4-turn shut-off valve designed for irrigation, pool and spa and general-purpose applications. IPS® sizes 1/2 to 2 in available in PVC white, PVC gray or CPVC with socket or threaded end connectors. Sizes 3 to 4 in available in PVC white with socket or threaded end connectors. 6 in size available in PVC white with socket end connectors and high-efficiency lever-style handle for easier operation.
