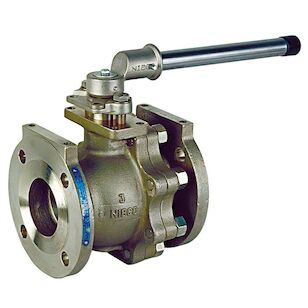

NIBCO® 3-F-515-S6-F-66-FS Ball Valve, 3 in, Flanged, Stainless Steel, 275 psi
NIBCO® 3-F-515-S6-F-66-FS Ball Valve, 3 in, Flanged, Stainless Steel, 275 psi
NIBCO® Ball Valve, 3 in Nominal, Flanged Connection, Full Port, 275 psi, 8 in Inlet to Outlet Length, 7.38 in Top to Inlet Center, Lever Handle Operator, Material Standard: ASTM A193, ASTM A194, ASTM A276, ASTM A351, Stainless Steel Body, RPTFE Seat, Stainless Steel Stem, 316 Stainless Steel Trim, Graphite Packing, Stainless Steel Ball, 400 deg F, 16.44 in L x 8.07 in W x 11.61 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$6,600.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Ball MaterialStainless Steel
Body MaterialStainless Steel
Connection TypeFlanged
Dimensions16.44 " L x 8.07 " W x 11.61 " H
IndustryPlumbing
Inlet to Outlet Length8
Material StandardASTM A193, ASTM A194, ASTM A276, ASTM A351
Nominal Size3
Operator TypeLever Handle
Packing MaterialGraphite
Port TypeFull
Pressure Rating275
Prop 65 WarningYes
Seat MaterialRPTFE
Stem MaterialStainless Steel
Temperature Rating400
Top to Inlet Center7.38
Trim Material316 Stainless Steel
Additional Information
API-607, API-608 Specified|ASME/ANSI B16.34, B16.5 Specified|MSS SP-72 Compliant
Features & Benefits
- Split body, full port design Blow-out-proof stem Multiple V-ring packing Mounting pad Vented ball Locking handle or manual gear operator Class 150 flanged end connections
Documents
Marketing Information
The NIBCO® stainless steel ball valve provides ease of operation with quarter-turn (90 deg) open to close. The valve is equipped with mounting pad for actuation purposes. The carbon filled PTFE seat ring, multiple V-ring graphite and braided graphite stem packing set and stainless steel ball and stem exhibit high chemical resistance properties. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO® ball valves are backed by the exclusive NIBCO Inc 5 years 125% limited warranty.
