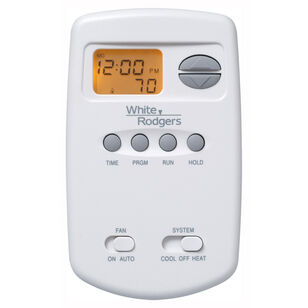

WHITE-RODGERS™ 70 Series 1E78-151 Thermostat, mV to 30 VAC, 1 to 1.5 A, 1.5 to 45 W, 5-2 day Program Programmability
WHITE-RODGERS™ 70 Series 1E78-151 Thermostat, mV to 30 VAC, 1 to 1.5 A, 1.5 to 45 W, 5-2 day Program Programmability
WHITE-RODGERS™ Thermostat, 70 Series, mV to 30 VAC, 1 to 1.5 A, 1.5 to 45 W Power, 50/60 Hz Frequency, Programmability: 5-2 day Program, Battery Power Source, 1 Heat/1 Cool Stages, Switch Position: HEAT-OFF-COOL (System), AUTO-ON (Fan), 0.8 deg F Fast, 1.5 deg F Slow Heating, 1.2 deg F Fast Cooling Fixed, 1.2 deg F Fast, 1.5 deg F Slow Heating Pump, 0.8 deg F Fast, 1.2 deg F Slow Auxiliary/Emergency Heating Differential, 45 to 90 deg F Settings, 32 to 105 deg F Ambient, 90% Non-Condensing Humidity, +/-1 deg C Accuracy, Vertical Mounting, Terminal Designation: RC, RH, W, Y, O, B, G, (2) AAA Battery, White, Dimensions: 5-5/16 in H x 3-3/16 in W x 1-1/8 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$98.46 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWHITE-RODGERS™
Accuracy+/-1
Amperage Rating1 to 1.5
ApplicationFor 1-stage (1H/1C) and gas, oil, electric, millivolt compatible
Battery Type(2) AAA
ColorWhite
Differential Temperature0.8 deg F Fast, 1.5 deg F Slow Heating, 1.2 deg F Fast Cooling Fixed, 1.2 deg F Fast, 1.5 deg F Slow Heating Pump, 0.8 deg F Fast, 1.2 deg F Slow Auxiliary/Emergency Heating
Dimensions5-5/16 " H x 3-3/16 " W x 1-1/8 " D
Frequency Rating50/60
Humidity Rating90% Non-Condensing
IncludesB/O Terminals
IndustryHVAC
Mounting TypeVertical
Power Rating1.5 to 45
Power SourceBattery
Programmability5-2 day Program
Series70 Series
Stages1 Heat/1 Cool
Switch PositionHEAT-OFF-COOL (System), AUTO-ON (Fan)
Temperature Rating32 to 105 deg F Ambient
Temperature Settings45 to 90
Terminal DesignationRC, RH, W, Y, O, B, G
Voltage RatingmV to 30 VAC
Additional Information
NEC Class II, Meets California Building Code, Title 24
Features & Benefits
- Fossil fuel or electric compatible Large LCD with backlight, easy-to-read thermostat display lighted display for easier low-light viewing Selectable celsius or fahrenheit temperature display Electronic temperature accuracy Energy savings upto 33% Adjustable room temperature calibration Covers wall marks left by most mechanical thermostats the need for an extra wall plate Maintains room temperature differential within +/- 1 deg Four time and Four temperature settings per program for heating and cooling
Marketing Information
The vertical 70 series thermostats build your new construction business. It's the first series of flexible thermostats enabling customers to wire and mount one subbase for use with the temporary new construction thermostat and easily snap on an upgrade to any 1E78 digital model upon building completion. The vertical 70 series low-profile design blends narrow width with new home decors. The universal subbase, for use with all 1E78 models, is designed to mount on a 2 x 4 in junction box or directly to the wall. There is also an optional wall plate for use in retro-fit applications. The 70 series thermostats are battery powered, making them easy to install and compatible with most heating and cooling systems. The vertical 70 series is perfect for new construction customers who want a quick and easy transition to job completion.
