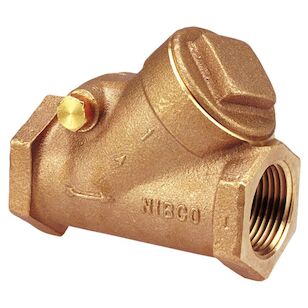

T433B 1 THD 150No. CHECK BRZ DISC
T433B 1 THD 150No. CHECK BRZ DISC
T433B 1 THD 150No. CHECK BRZ DISC
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$504.00Â /Â ea
In Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
All Basic MaterialBronze
All Type Of ItemValve
End ConnectionThreaded
Height1.98"
IndustryPlumbing
Length3.56"
Made in USATrue
MaterialBronze
Mpg20
Nominal Pipe Size1
Nominal Size 11".
Prop 65 WarningYes
Seat Seal MaterialBronze
Size Dimensions1".
Turns OperationsNon-Manual
Type Of Check ValveSwing
Type Of ValveCheck Valve
Valve End Connection TypeT -- Female NPT Thread (FIPT)
Valve Multi Turn Bonnet DesignScrew-in Bonnet
Valve Pressure Rating Cwp300 PSI/20.7 Bar CWP
Valve Pressure Rating Swp150 PSI/10.3 Bar SWP
Valve Trim PackageBronze Disc
Weight1.57 lbs.
Width2.99"
Shipping Dimensions (L x W x H)9.75" x 3.5" x 4.56"
Features & Benefits
- 150 psi/10.3 bar saturated steam to 366 degreeF/185 degreeC
- 300 psi/20.7 bar non-shock cold working pressure
- Y-pattern
- Renewable bronze disc
- Regrindable seat
- Class 150 threaded end connections
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-80
Documents
Marketing Information
The NIBCO bronze check valve features threaded end connections for ease of installation. Swing checks may be installed in horizontal positions (or vertical with flow moving up). Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO check valves are backed by the NIBCO 5-year 125 Percent limited warranty.
T433B 1 THD 150No. CHECK BRZ DISC
BrandNIBCO®
MFG #NL7J00A
Keller #288995
My Part ##
Last Ordered#
$504.00Â /Â ea
