NIBCO CS595YXEC-1/2 BRZ BALL VLV NOT FOR POTABLE USE
NIBCO CS595YXEC-1/2 BRZ BALL VLV NOT FOR POTABLE USE

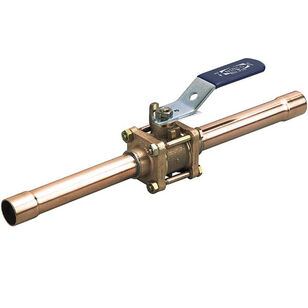

NIBCO® Ball Valve, CS-595-YX-EC Series, 1/2 in Nominal, C Stub Connection, Full Port, 600 psi, Gas Media, Manual Actuator, 13.11 in Inlet to Outlet Length, Quarter-Turn Lever Handle Operator, Material Standard: ASTM B16 C36000, C65100, C69430, C84400, Bronze Body, PTFE Seat, Silicon Bronze Alloy Stem, FKM Seal, PTFE Packing, Steel Handle, Brass Ball, 13.11 in L x 1.77 in W x 2.58 in H, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$697.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Actuator TypeManual
ApplicationFor medical gas systems
Ball MaterialBrass
Body MaterialBronze
Connection TypeC Stub
Dimensions13.11 " L x 1.77 " W x 2.58 " H
Domestic/ImportDomestic
Handle MaterialSteel
Inlet to Outlet Length13.11
Material StandardASTM B16 C36000, C65100, C69430, C84400
MediaGas
Nominal Size1/2
Operator TypeQuarter-Turn Lever Handle
Packing MaterialPTFE
Port TypeFull
Pressure Rating600
Seal MaterialFKM
Seat MaterialPTFE
SeriesCS-595-YX-EC Series
Stem MaterialSilicon Bronze Alloy
Warranty5 Year Limited
Additional Information
MSS SP-110 Specified
Features & Benefits
- Blowout-proof stem design Dezincification-resistant Cleaned and bagged for medical gas
Marketing Information
The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close. The PTFE seat ring and brass hard chrome-plated ball exhibits high-chemical resistance properties and is recommended for many high-pressure applications. The three piece valve features solder end connections for easy installation. Options include NIB-SEAL® insulated handle that eliminates condensate. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO® 5 year 125% limited warranty.
