EPDM Disc, Inline Pattern, Plastic Seat

• Pre-assembled unit All bronze body construction with solder connection High-capacity fill

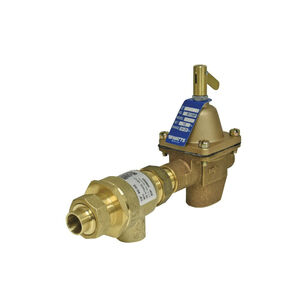

This 1/2 in bronze combination fill valve and backflow preventer is for use in commercial and residential hydronic heating systems to provide make-up water to the boiler and prevent backflow when supply pressure falls below system pressure. It consists of a bronze backflow preventer, model 9D and a bronze feed water pressure regulator, model 1156F, in one pre-assembled unit. The high-capacity fill valve provides quick system filling and purging. It is designed for use in the boiler feed lines of hydronic heating systems and has 1/2 in union solder inlet x NPT threaded outlet connections. The maximum pressure is 100 psi (6.9 bar).
