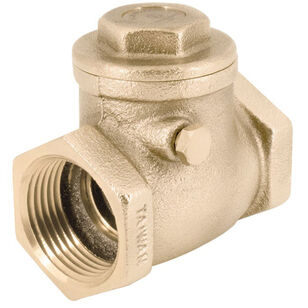

Legend Valve T-451 Series 105-104 Swing Check Valve, 3/4 in, FNPT, Brass
Legend Valve T-451 Series 105-104 Swing Check Valve, 3/4 in, FNPT, Brass
Legend Valve Swing Check Valve, T-451 Series, 3/4 in Nominal, FNPT Connection, 200 psi, Full Port, Water Media, 2.36 in Inlet to Outlet Length, 1.56 in Top to Inlet Center, 3/4 in Opening, Brass Body, Brass Disc, Brass Trim, Fiber Softgoods, Additional Information: 18 Cv Flow Coefficient
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$23.07Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandLegend Valve
Additional Information18 Cv Flow Coefficient
Body MaterialBrass
Connection TypeFNPT
Disc MaterialBrass
IndustryPlumbing
Inlet to Outlet Length2.36
MediaWater
Nominal Size3/4
Opening Size3/4
Port TypeFull
Pressure Rating200
SeriesT-451 Series
Softgoods MaterialFiber
Top to Inlet Center1.56
Trim MaterialBrass
Shipping Dimensions (L x W x H)7.2" x 4.4" x 9.1"
Additional Information
ANSI/ASME B1.20.1, B16.18
Features & Benefits
- Durable, full-pattern cast brass body Large, integral seat and disc sealing surfaces Forged brass hinge pin assures smooth, non-binding disc operation T-pattern body permits either vertical (upward flow only) or horizontal (assembly cap upright) installations
Documents
Legend Valve T-451 Series 105-104 Swing Check Valve, 3/4 in, FNPT, Brass
BrandLegend Valve
MFG #105-104
Keller #296906
