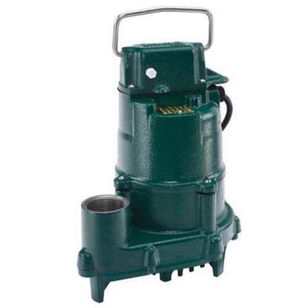

ZOELLER 152-0002 N152 115V SUB PUMP
ZOELLER 152-0002 N152 115V SUB PUMP
Zoeller® Effluent Pump, 115 VAC, 8.5 A, 60 Hz Frequency, HP Rating: 4/10 hp, 3450 rpm Speed, 77 gpm Flow Rate, 1 ph, 1-1/2 in Discharge, 20 ft Cord Length, Maximum Feet of Head: 44 ft, 130 deg F, Thermoplastic Impeller, Dimensions: 12.125 in H x 10.093 in W x 7.75 in D, Cast Iron
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$516.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandZoeller®
Amperage Rating8.5 A
ApplicationFor low-pressure pipe (LPP) and enhanced flow STEP systems, septic tanks
Cord Length20'
Dimensions12.125" H x 10.093" W x 7.75" D
Discharge Size1-1/2"
Flow Rate77 gpm
Frequency Rating60 Hz
HP Rating4/10 hp
Impeller MaterialThermoplastic
MaterialCast Iron
Maximum Feet of Head44'
Phase1 ph
Speed Rating3450 rpm
Temperature Rating130 deg F
Voltage Rating115 VAC
Features & Benefits
- Durable, cast iron construction
- Corrosion-resistant, powder-coated epoxy finish
- Stainless steel lifting handle
- Assembled with stainless steel bolts
- Non-clogging, engineered thermoplastic, vortex impeller design
- Passes 3/4 in (13 mm) spherical solids
- 3450 rpm, oil-filled, hermetically-sealed, automatic reset thermal overload protected motor
- Carbon/ceramic seal
- Upper sleeve bearing and lower ball bearing running in bath of oil
- 20 ft, UL listed power cord with molded, three wire plug
Documents
ZOELLER 152-0002 N152 115V SUB PUMP
BrandZoeller®
MFG #152-0002
Keller #297460
