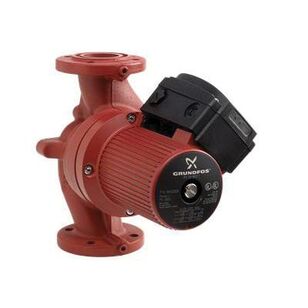

Grundfos UPS 32-160 F 96402736 VersaFlo Circulator Pump, 32.9 gpm, 600 W, 208-230 V, 1.96 A, 60 Hz, 145 psi Max Pressure
MFG #96402736
Item #300524
Mfr. Part #96402736
UPC #5700390679507
Grundfos VersaFlo Circulator Pump, Model: UPS 32-160 F, 32.9 gpm Flow Rate, 52-1/2 ft Maximum Head, 600 W, 208-230 V, 1.96 A, 60 Hz, 145 psi Maximum Pressure, 3450 rpm Motor Speed Rating, 3/4 hp, GF40/43 Connection, Flanged Connection, 3 ph Phase, 2 Poles, In-Line Mounting, 104 deg F Ambient, 248 deg F Liquid, Iron, 13-1/2 in H x 12-1/6 in W, Additional Information: 304 Stainless Steel Impeller Material
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$3,135.00Â /Â ea
Out of Stock
Attributes
Additional Information
Features & Benefits
Documents
Attributes
BrandGrundfos
Additional Information304 Stainless Steel Impeller Material
Amperage Rating1.96
Connection SizeGF40/43
Connection TypeFlanged
Dimensions13-1/2 " H x 12-1/6 " W
Flow Rate32.9
Frequency Rating60
HP Rating3/4
MaterialIron
Maximum Head52-1/2
Maximum Pressure145
ModelUPS 32-160 F
Motor Speed Rating3450
Mounting Type"-Line
Number of Poles2
Phase3
Power Rating600
Temperature Rating104 deg F Ambient, 248 deg F Liquid
Voltage Rating208-230
Additional Information
cUL Listed
Features & Benefits
Three speed motor
Ceramic radial bearings
Carbon axial bearing
Stainless steel rotor can, bearing plate and rotor cladding
Aluminum alloy stator housing
Bronze fitted construction
Stator with built-in thermal switch
Built-in motor protection for longer life
Whisper quiet operations
UPS pumps have a 2 or 3 speed switch, which increases the comfort level for the application
Sealless, which eliminates worries about hot water leakage
Pumped water lubricates the shaft and bearings so there is no oil to leak
