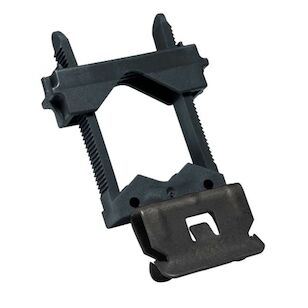

SIOUX 550-11E TD BEAM CLAMP
SIOUX 550-11E TD BEAM CLAMP
Sioux Chief Universal Beam Clamp With Attached Beam Clamp, 550 Series, Maximum Clamp Diameter: 1 in, Minimum Clamp Diameter: 1/4 in, Nylon Body, Black, 1.37 in Width, 2.36 in Height, 18 ga Thickness, 220 deg F, 75 lb Load, For Use With: CTS Tubes
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4.32Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSioux Chief
Body MaterialNylon
Color/FinishBlack
FinishBlack
Height2.36
Load Capacity75
Maximum Clamp Diameter1
Minimum Clamp Diameter1/4
Series550 Series
Suitable For Use WithCTS Tubes
Temperature Rating220
Thickness18
Width1.37
Additional Information
cUPC Certified|IAPMO Listed
Features & Benefits
- Patent # 6,126,122 Clamps 1/4" - 1" CTS tubing and 1/8" - 1" Sch. 40 pipe (steel or plastic) Locking mechanism allows variable tension - clamp tightly or allow for expansion and contraction Provides 1/4" stand-off from mounting surface Plenum-Rated model meets ASTM E84 25/50 Flame/Smoke Spread and UL-94 V0 flame ratings Compatible with copper, PEX or CPVC
Documents
Marketing Information
Sioux Chief 550-11E TouchDown Beam Clamp shall be used indoors where necessary to secure or suspend 1/4" to 1" CTS pipe or conduit from steel I-beams or steel truss members in commercial applications. Variable clamping tension allows for thermal expansion and contraction. Clamp shall be pre-assembled to metal beam clamp using tri-grip rivet. Clamp shall pivot to run pipe perpendicular or parallel to the steel I-beam or steel truss member. Clamp shall be corrosionresistant. Clamp shall be compatible with copper, PEX and CPVC. Plastic clamp shall be IAPMO certified.
SIOUX 550-11E TD BEAM CLAMP
BrandSioux Chief
MFG #550-11E
Keller #300610
My Part ##
Last Ordered#
$4.32Â /Â ea
