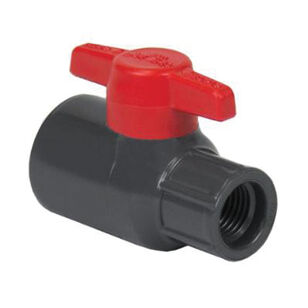

Spears® 2122-007C Compact Ball Valve, 3/4 in, Socket, CPVC, 235 psi
Spears® 2122-007C Compact Ball Valve, 3/4 in, Socket, CPVC, 235 psi
Spears® Compact Ball Valve, 3/4 in Nominal, Socket Connection, Regular, 235 psi, Water Media, 3-7/8 in Inlet to Outlet Length, 2-5/8 in Top to Inlet Center, Handle Operator, 74 Cv Flow Coefficient (Cv), Material Standard: ASTM D1784, ASTM F1970, CPVC Body, PTFE Seat, PTFE Trim, Polypropylene Handle, PTFE Softgoods, Gray, 73 deg F, 3-7/8 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$71.56 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSpears®
ApplicationFor use in potable water service
Body MaterialCPVC
ColorGray
ConfigurationRegular
Connection TypeSocket
Dimensions3-7/8 " L
Domestic/ImportDomestic
Flow Coefficient (Cv)74
Handle MaterialPolypropylene
Inlet to Outlet Length3-7/8
Material StandardASTM D1784, ASTM F1970
MediaWater
Nominal Size3/4
Operator TypeHandle
Pressure Rating235
Seat MaterialPTFE
Softgoods MaterialPTFE
Temperature Rating73
Top to Inlet Center2-5/8
Trim MaterialPTFE
Additional Information
NSF Certified
Features & Benefits
- Chemical and corrosion-resistant PVC or CPVC construction SCH 80 full bore design High-impact polypropylene handle Spears® single O-ring Safe-T-Shear® stem design Self-adjusting PTFE floating seat design Suitable for vacuum service Assembled with silicone-free, water soluble lubricant
Documents
Marketing Information
This industrial-grade, 1/4-turn shut-off valve is popular where maintenance-free installations are desired for a variety of chemical processing, industrial and OEM applications. IPS® Sizes 1/2 to 4 in available with socket, threaded or flanged end connectors, 6 in size available with socket or flanged end connectors. 6 in valve uses high-efficiency lever-style handle for easier operation.
Spears® 2122-007C Compact Ball Valve, 3/4 in, Socket, CPVC, 235 psi
BrandSpears®
MFG #2122-007C
Keller #301933
My Part ##
Last Ordered#
$71.56 / ea
