VIC V050716PE0 5 CKV 716 E STD MC 141.3MM NO DRAIN TAP BLK C050141000 VIC-CHECK VALVE
VIC V050716PE0 5 CKV 716 E STD MC 141.3MM NO DRAIN TAP BLK C050141000 VIC-CHECK VALVE

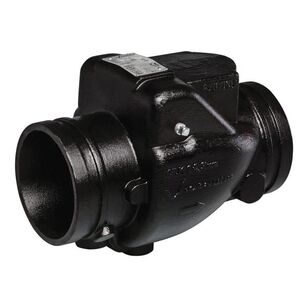

Victaulic® Check Valve, 716 Series, 5 in Nominal, Grooved Connection, 365 psi, -30 to 230 deg F, 10-1/2 in Inlet to Outlet Length, 4-1/2 in Top to Inlet Center, Iron Body, Iron Seat, EPDM Seal, Iron Disc, 302/304 Stainless Steel Trim, Black, Finish: Painted
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,356.50 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandVictaulic®
Body MaterialIron
ColorBlack
Connection TypeGrooved
Disc MaterialIron
FinishPainted
Inlet to Outlet Length10-1/2
Nominal Size5
Pressure Rating365
Seal MaterialEPDM
Seat MaterialIron
Series716 Series
Temperature Rating-30 to 230
Top to Inlet Center4-1/2
Trim Material302/304 Stainless Steel
Additional Information
ASTM A536|CE Marked|UKCA Certified
Features & Benefits
- Features an elastomer encapsulated disc and a welded in nickel seat Prevents back flow Single disc mechanism incorporates a spring assisted feature for non-slamming operation Can be installed either vertically or horizontally Valve body cast with arrow indicator to assist with proper valve orientation
VIC V050716PE0 5 CKV 716 E STD MC 141.3MM NO DRAIN TAP BLK C050141000 VIC-CHECK VALVE
BrandVictaulic®
MFG #V050716PE0
Keller #305214
