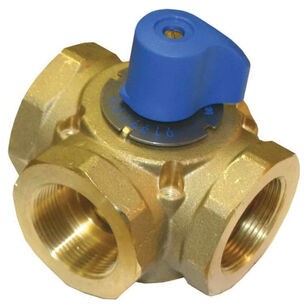

Tekmar® 713 Mixing Valve, 1-1/2 in, FNPT, 146 psi, Brass
Tekmar® 713 Mixing Valve, 1-1/2 in, FNPT, 146 psi, Brass
Tekmar® Mixing Valve, 1-1/2 in Nominal, FNPT Connection, Number of Ports/Ways: 3, 146 psi, 32 Cv Flow Coefficient (Cv), EPDM Seal, Brass, Material Standard: CW 617N - EN 12165, Chilled, Hot Water Media, 2-3/16 in Top to Inlet Center, -20 to 248 deg F, 4-3/4 in H x 4-3/8 in W, Domestic/Import: Domestic, Additional Information: EPDM Peroxide ''O'' Ring, For use with closed loop or open loop hydronic systems
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,286.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTekmar®
Additional InformationEPDM Peroxide ''O'' Ring, For use with closed loop or open loop hydronic systems
Connection TypeFNPT
Dimensions4-3/4 " H x 4-3/8 " W
Domestic/ImportDomestic
Flow Coefficient (Cv)32
IndustryHydronics
MaterialBrass
Material StandardCW 617N - EN 12165
MediaChilled, Hot Water
Nominal Size1-1/2
Number of Ports/Ways3
Pressure Rating146
Seal MaterialEPDM
Temperature Rating-20 to 248
Top to Inlet Center2-3/16
Additional Information
EPDM Peroxide ''O'' Ring, For use with closed loop or open loop hydronic systems
Features & Benefits
- Brass construction to resist corrosion Maximum leak through rate of 1 percent to allow for water expansion during temperature changes
Marketing Information
The 3-way brass mixing valve 713 is used to mix supply water from a hydronic source with water returning from a system. It is designed for use in either closed loop or open loop hydronic systems. This 3-way valve has standard female NPT threads, as well as a maximum leak through rate of 1 percent to allow for water expansion during temperature changes. The valve position can be manually set using the handle. An actuating motor 741 can be used to automatically operate the valve.
