EWC 14 EBD STATIC PRESSURE BYPASS
EWC 14 EBD STATIC PRESSURE BYPASS

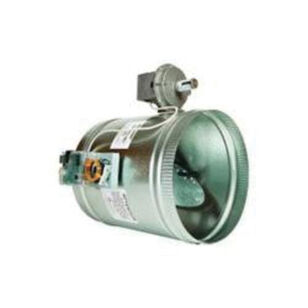

EWC® Ultra-Zone™ Electronic Damper, EBD Model, 14 in Size, 24 VAC, 50/60 Hz, 24 ga Steel, Galvanized, Round, Terminal Block Connection, Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$990.99 / ea
In Stock
- Attributes
- Features & Benefits
- Marketing Information
Attributes
BrandEWC®
Connection TypeTerminal Block
Domestic/ImportDomestic
FinishGalvanized
Frequency Rating50/60 Hz
IndustryHVAC
Material24 ga Steel
ShapeRound
Size14"
Voltage Rating24 VAC
Features & Benefits
- Round bypass dampers are fabricated from 24 ga galvanized steel
- The rolled shells are furnished with one straight (female) end and one crimped (male) end with stiffening beads for rigidity
- Round EBD bypass dampers are equipped with low leakage blade seals
- Reevecote diaphragm sensing element
- 24 VAC at 3 V-A 1.5 W required to pressure switch
- Pressure switch is factory wired to damper motor
- SPDT HD contacts rated for 10 A at 120 VAC
- (2) 1/4 in OD brass barbed air pressure connectors, (2) pitot tubes, (2) pressure tubing
Marketing Information
The EBD (electronic bypass) style are self-contained units that give you the static control mounted to the damper. It is an "all-in-one" design that makes the installation process much easier than most electronic bypass dampers. The static pressure can be adjusted in the field between 0.5 to 4 in of pressure. This is done by the turn of a set-screw.
