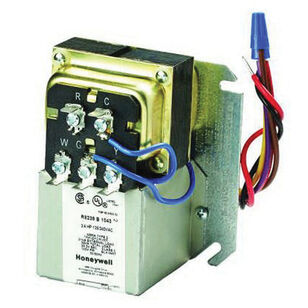

Honeywell R8239B1076 Fan Center, 120/208/240 VAC Primary, 26.5 V Secondary, 3/4 hp Relay, 12 W, DPDT Switch
MFG #R8239B1076/U
Item #315011
Mfr. Part #R8239B1076/U
UPC #085267080323
Honeywell Fan Center, 120/208/240 VAC Primary, 26.5 V Secondary Voltage Rating, 3/4 hp Relay HP Rating, 12 W Power Rating, DPDT Switch Type, 50/60 Hz Frequency Rating, 50 V-A, 17 V-A Nominal Inrush, 10 V-A Maximum, 9 V-A Nominal Sealed, 20 V-A Maximum Coil Pilot Duty Rating, 4 x 4 in Junction Box Mounting Type, 4-3/16 in L x 3-3/32 in W x 4-1/2 in H Dimensions
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$251.16Â /Â ea
In Stock
Attributes
Additional Information
Features & Benefits
Documents
Attributes
BrandHoneywell
ApplicationFor system with F50 electronic air cleaner humidifier and blower motors
Dimensions4-3/16 " L x 3-3/32 " W x 4-1/2 " H
Frequency Rating50/60
HP Rating3/4 hp Relay
IndustryHVAC
Mounting Type4 x 4 " Junction Box
Pilot Duty Rating50 V-A, 17 V-A Nominal Inrush, 10 V-A Maximum, 9 V-A Nominal Sealed, 20 V-A Maximum Coil
Power Rating12
Switch TypeDPDT
Voltage Rating120/208/240 VAC Primary, 26.5 V Secondary
Additional Information
UL Listed, CSA Certified, NEMA Standard DC20-1992
Features & Benefits
Provides overload protection for transformer
Convenient connections for thermostat and heating and cooling equipment wiring
Can be mounted in any indoor location without additional enclosure
Relay is easily replaced without disturbing wiring
Includes NEMA standard type D transformer powers 24 VAC control systems and relay enclosure
